BRAKE FLUID INSPECTION

id041100700200

Oil and Chemical Type

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

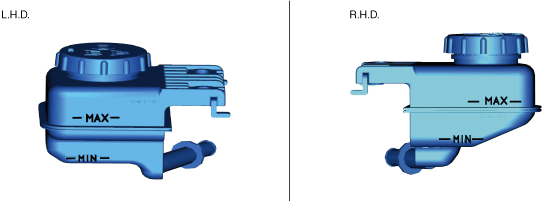

1.  Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.

a30zzw00005642

•  If the brake fluid is less than MIN, verify the following and if there is no abnormality, add brake fluid.

―  Brake fluid leakage

―  Condition and wear of disc pads
