FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY
id041100701200
Replacement Part
Dust seal
Quantity: 1
Location of use: Caliper body
|
Piston seal
Quantity: 1
Location of use: Piston
|
Oil and Chemical Type
Brake fluid type
Type: Mazda Genuine Brake Fluid or equivalent
|
Rubber grease (Pink)
Type: Cosmo rubber grease
|

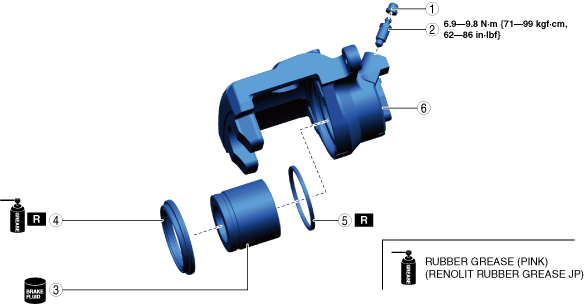

1. Disassemble in the order indicated in the table.
a30zzw00004314
|
1
|
Bleeder cap
|
2
|
Bleeder screw
|
3
|
Piston
(See Piston Disassembly Note.)
|
4
|
Dust seal
|
5
|
Piston seal
|
6
|
Caliper body
|
2. Assemble in the reverse order of removal.
Piston Disassembly Note
1. Insert a piece of wood in the caliper as shown in the figure and blow compressed air through the hole to remove the pistons from the caliper body.
a30zzw00003430
|
