REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION

id041100702000

Warning
•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode.
Caution
•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released.
Note
•  When in maintenance mode, the clearance between the disc pad and the disc plate expands.
•  When the maintenance mode is completed, perform the electric parking brake automatic adjustment.
•  With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE.)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

Caution
•  Do not allow moisture, dust or foreign matter to penetrate the connector as it could cause the electric parking brake motor gear unit to malfunction.

4.  Disconnect the electric parking brake motor gear unit connector. (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.)

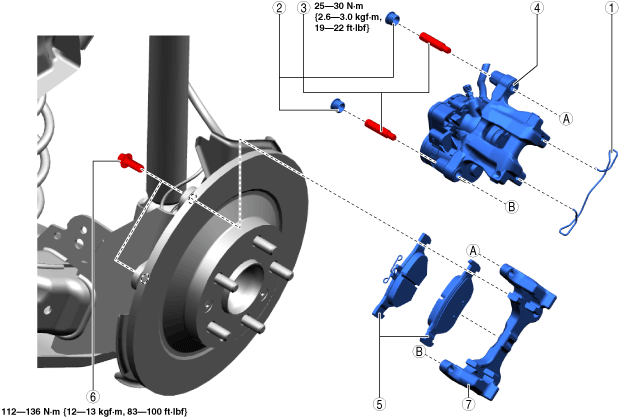

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  End the maintenance mode. (See MAINTENANCE MODE.)

a30zzw00004306

1
Retaining clip
(See Retaining Clip Installation Note.)
2
Cap
3
Bolt
4
Rear brake caliper
(See Rear Brake Caliper Removal Note.)
5
Disc pad component
6
Bolt
7
Rear brake mounting support


Rear Brake Caliper Removal Note

1.  Remove the rear brake caliper and suspend it in a place out of the way using a cable.

am3zzw00025047


Retaining Clip Installation Note

1.  Temporarily install the retaining clip to the rear brake caliper and rear brake mounting support as shown in the figure.

am3zzw00025048

2.  While holding retaining clip A so that it does not detach from the rear brake caliper, install retaining clip B to the rear brake mounting support.

am3zzw00025049

3.  Verify that the retaining clip is installed to the rear brake caliper and rear brake mounting support securely.
