PARKING LOCK ACTUATOR [A71M]

id0525a7000900


Outline

•  The parking lock actuator performs the parking lock/unlock operation.
•  Parking lock/unlock is performed by driving the motor in the parking lock actuator based on the switching request signal sent by the PCM.
Caution
•  If the parking lock actuator is installed/removed/replaced, it is necessary to perform the parking lock actuator initialization procedure. Refer to the Workshop Manual for details.

Construction

Parking lock actuator

a30zzn00000826

Parking lock mechanism

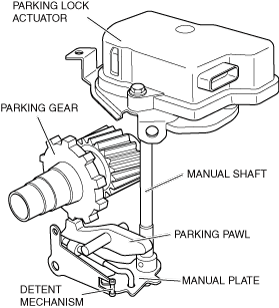

a30zzn00000827

Function

The parking lock actuator has the following functions.

Function

Outline
Parking lock switching availability determination/command
Determines switching availability for the parking lock switching command received from the PCM.
Parking lock switching/maintained
Locks/unlocks the parking by the built-in motor to maintain that condition.
Parking lock condition detect/output
The microcomputer in the parking lock actuator detects the current parking lock condition and sends it to the PCM.


Operation


Parking lock switching availability determination/command

•  The microcomputer in the parking lock actuator detects whether or not there is a malfunction in the actuator and sends it to the PCM via CAN communication.
•  If a malfunction is detected, the parking lock switching demand received from the PCM is cancelled.


Parking lock switching control, hold control

•  Parking lock
a30zzn00001511
―  The motor in the parking lock actuator rotates to rotate the manual shaft in the direction of the arrow A.
―  The manual plate installed to the end of the manual shaft rotates.
―  The link connected to the manual plate moves in the direction of arrow B and pushes up the parking pawl to engage it and the parking gear.
―  The parking lock is maintained by engaging the parking pawl and parking gear.
•  Parking unlock

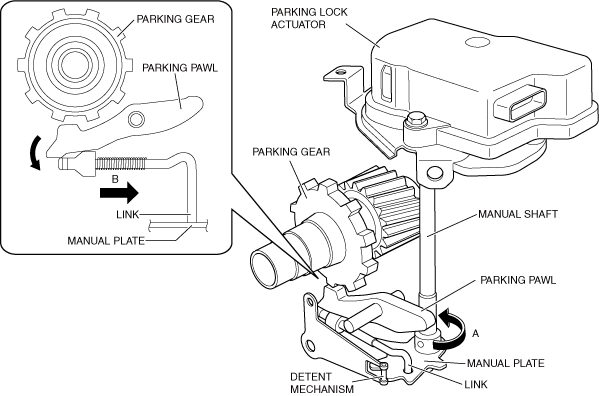

a30zzn00001512
―  The motor in the parking lock actuator rotates to rotate the manual shaft in the direction of the arrow A.
―  The manual plate installed to the end of the manual shaft rotates.
―  The link connected to the manual plate moves in the direction of arrow B and the engagement of the parking pawl and the parking gear is disengaged.
―  The parking unlock is maintained by the manual plate being secured by the detent mechanism.


Parking lock condition detect/output

•  The microcomputer in the parking lock actuator detects the operation angle of the manual shaft to determine the current parking lock condition.
•  The microcomputer in the parking lock actuator sends the determined parking lock condition to the PCM.
