INDICATOR INSPECTION [A71M]
id0526a7001100
1. Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the indicator. (See INDICATOR REMOVAL/INSTALLATION [A71M].)

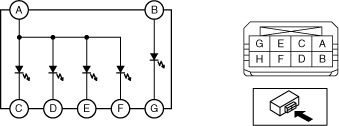

3. Apply lead-acid battery voltage and connect the ground to each terminal of the indicator as indicated in the table below and verify that each LED turns on normally.
a30zzw00002255
|
|
Terminal B+ |
Ground terminal |
Status |
||||
|---|---|---|---|---|---|---|
|
PRND letter illumination |
Shift indicator |
|||||
|
P position |
R position |
N position |
D position |
|||
|
B
|
G
|
Turns ON
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
|
A
|
C
|
Turns OFF
|
Turns ON
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
|
A
|
D
|
Turns OFF
|
Turns OFF
|
Turns ON
|
Turns OFF
|
Turns OFF
|
|
A
|
E
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
Turns ON
|
Turns OFF
|
|
A
|
F
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
Turns OFF
|
Turns ON
|
