MANIFOLD GAUGE SET CONNECTION

id071000700300

1.  Close all valves of the manifold gauge.

2.  Attach the charging hose to the manifold gauge.

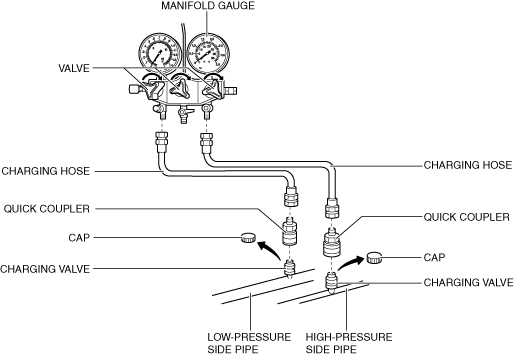

a30zzw00002285

3.  Attach the quick coupler to the tip of the charging hose for high/low pressure.

4.  Connect the quick coupler to the charging valve installed in the high/low-pressure piping.
