VENTILATION SYSTEM


id071100700100


Outline

•  The ventilation system adjusts the airflow temperature sent from the blower unit or the air vent mode

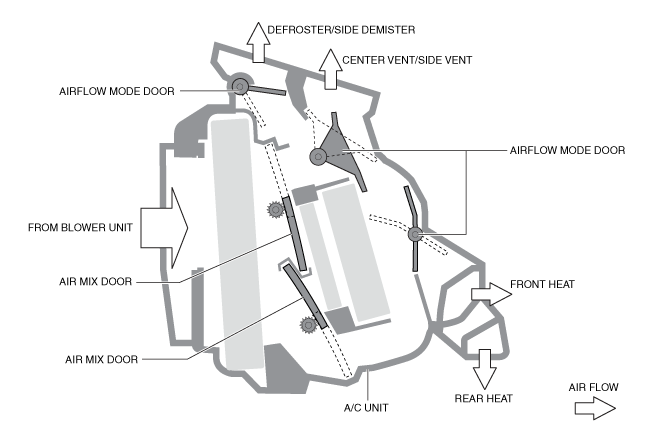

Function

•  The ventilation system adjusts the airflow temperature based on the position of the air mix door.
•  The ventilation system adjusts the airflow mode based on the position of the airflow mode door.
a30zzn00001045

Structural view

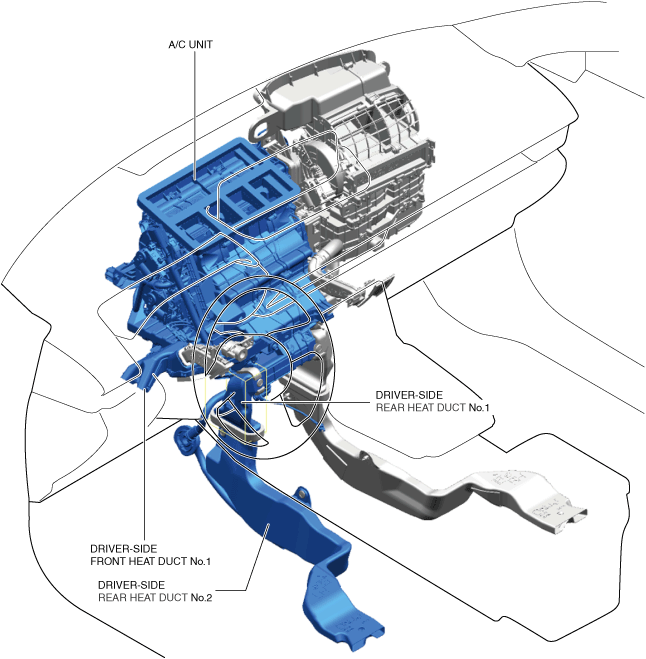

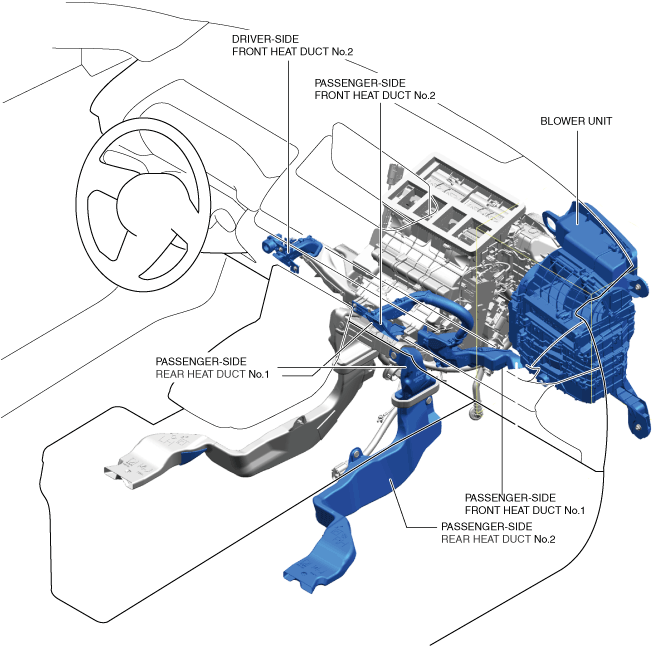

L.H.D.

a30zzn00001043
a30zzn00001044

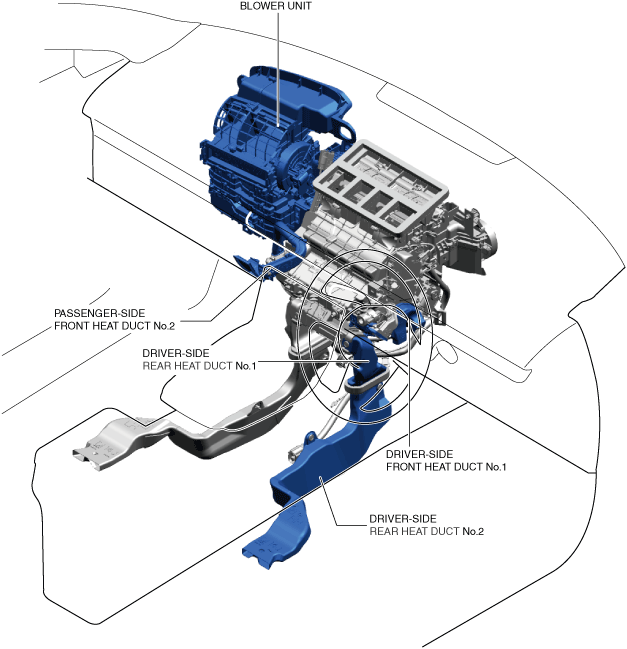

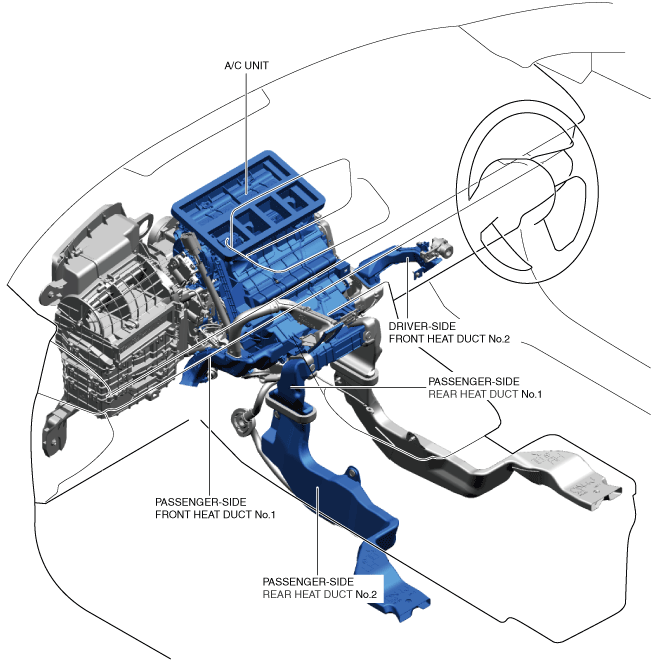

R.H.D.

a30zzn00002235
a30zzn00002236


Operation

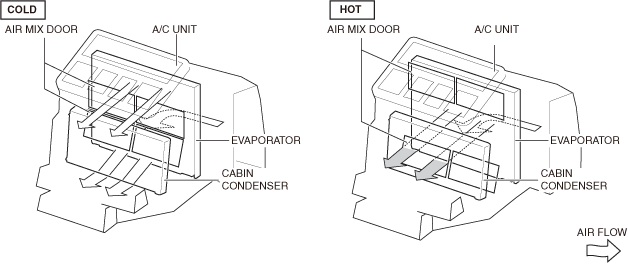

Air mix door

1.  The air mix actuator operates according to the airflow temperature control of the heat pump control unit.
2.  The air mix door moves in the COLD or HOT direction according to the operation of the air mix actuator.
3.  The airflow volume blowing from the evaporator to the cabin condenser changes by the movement of the air mix door, and the temperature of the air which passes is adjusted.
a30jjn00000139

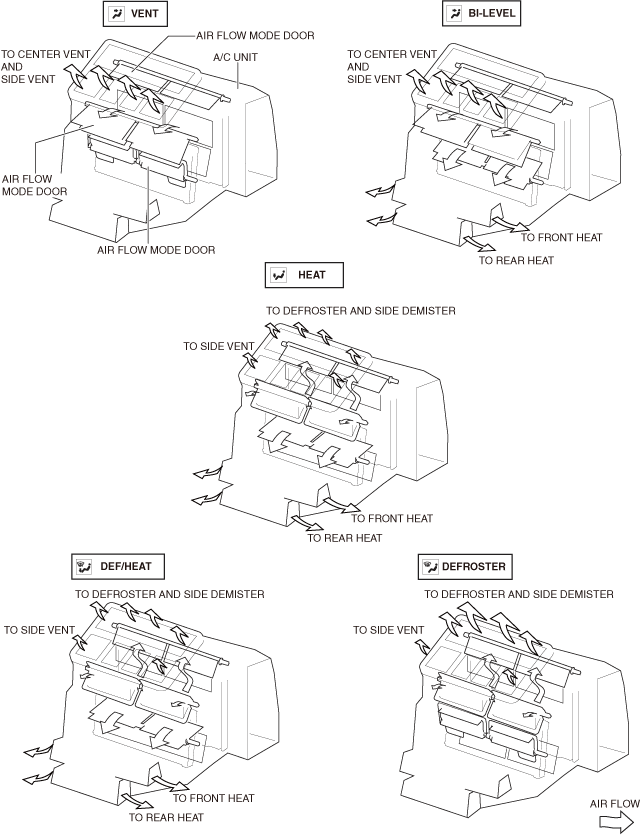

Airflow mode door

1.  The airflow mode actuator operates according to the airflow mode control of the heat pump control unit.
2.  The airflow mode main link operates according to the airflow mode actuator operation.
3.  The airflow mode door moves in the VENT, BI-LEVEL, HEAT, DEF/HEAT, or DEFROSTER direction according to the airflow mode main link. The air vent changes by the movement of the airflow mode door.
a30jjn00000140

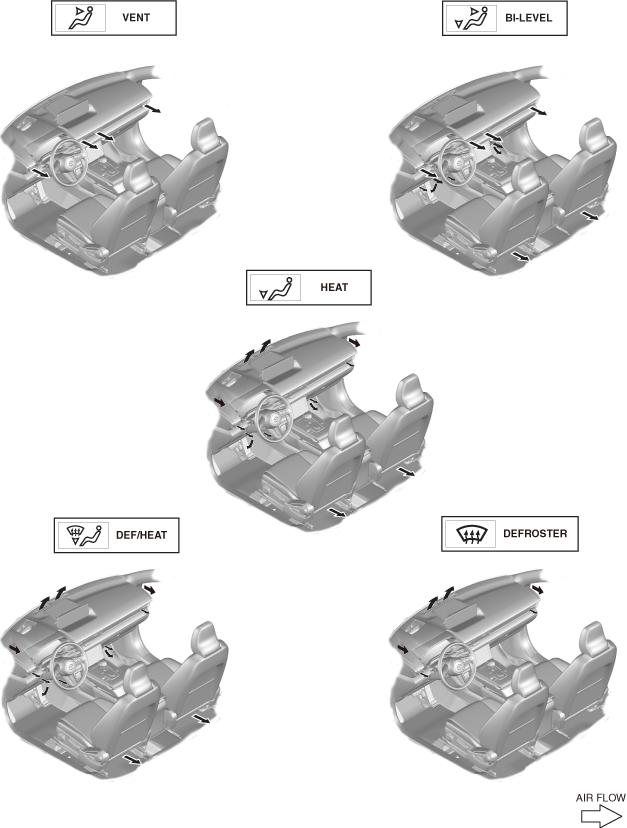

•  The airflow distributed by the airflow mode door passes through the duct and the air is blown from each air vent shown in the figure to the cabin.
a30zzn00001042
