A/C UNIT DISASSEMBLY/ASSEMBLY

id071100702500

Oil and chemical type

Refrigerant

Type: HFO-1234yf (R-1234yf)

Compressor oil

Type: ND-OIL11

Caution

• If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Do not apply non-specified grease to the links.

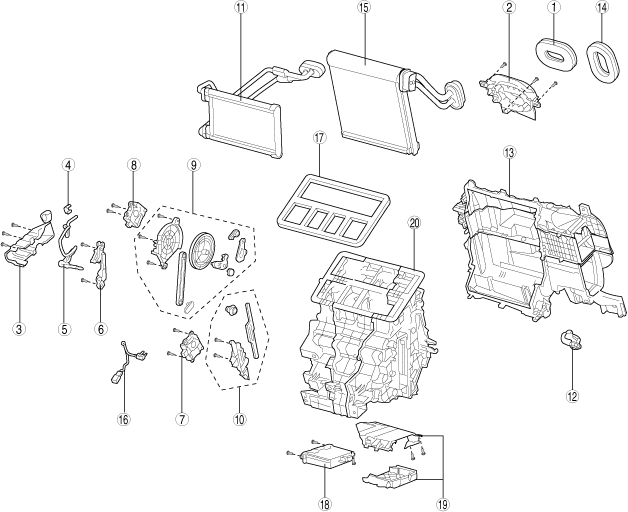

1. Disassemble in the order shown in the figure.

2. Assemble in the reverse order of disassembly.

a30zzw00002774

×: Applicable

—: Not applicable

Step	Part name	Disassembly/assembly of main parts
Step	Part name	Cabin condenser	Evaporator	Evaporator temperature sensor
1	Polyurethane foam	×	×	×
2	Cover	×	×	×
3	Cover	×	×	×
4	Clip	×	×	×
5	Temperature sensor of air for PTC/temperature sensor of refrigerant line for electric compressor outlet	×	×	×
6	Bracket	×	×	×
7	Air mix actuator	×	×	×
8	Mode actuator	—	×	×
9	Airflow mode main link	—	×	×
10	Air mix link	×	×	×
11	Cabin condenser (See Cabin Condenser Assembly Note.)	×	×	×
12	Drain hose	—	—	—
13	A/C case (1)	—	×	×
14	Polyurethane foam	—	×	×
15	Evaporator (See Evaporator Temperature Sensor Assembly Note.)	—	×	×
16	Evaporator temperature sensor (See Evaporator Temperature Sensor Assembly Note.)	—	—	×
17	Adhesive polyurethane	—	—	—
18	Heat pump control unit	—	—	—
19	Cover	—	—	—
20	A/C case (2)	—	—	—

Evaporator Temperature Sensor Assembly Note

Caution

• When the evaporator is reused, slide the evaporator temperature sensor away from the conventional position and assemble. If the evaporator temperature sensor is assembled to the conventional position when reusing the evaporator, it may not be assembled correctly due to fin deformation and the sensor may not function.

Note

• Newly replace an evaporator in which the evaporator temperature sensor cannot be correctly positioned.

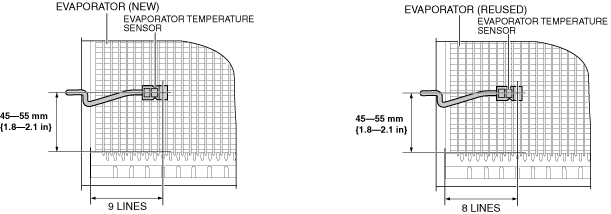

1. Assemble the evaporator temperature sensor at the position shown in the figure.

a30zzw00002775

Evaporator Assembly Note

1. When replacing the evaporator, add compressor oil to the refrigeration cycle.

Compressor oil

Category	Supplemental amount (reference)
ND-OIL11	40 ml {40 cc, 1.4 US fl oz}

Cabin Condenser Assembly Note

1. When replacing the cabin condenser, add compressor oil to the refrigeration cycle.

Compressor oil

Category	Supplemental amount (reference)
ND-OIL11	15 ml {15 cc, 0.51 US fl oz}
