TEMPERATURE SENSOR OF REFRIGERANT LINE FOR EVAPORATOR OUTLET INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1704600

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the temperature sensor of refrigerant line for evaporator outlet. (See TEMPERATURE SENSOR OF REFRIGERANT LINE FOR EVAPORATOR OUTLET REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

3.  Measure the temperature around the temperature sensor of refrigerant line for evaporator outlet and measure the resistance between temperature sensor of refrigerant line for evaporator outlet terminals A and B

a30jjw00000109

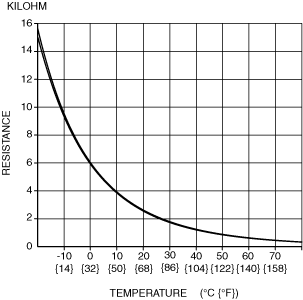

•  If the characteristics of the temperature sensor of refrigerant line for evaporator outlet are not as shown in the graph, replace the temperature sensor of refrigerant line for evaporator outlet. (See TEMPERATURE SENSOR OF REFRIGERANT LINE FOR EVAPORATOR OUTLET REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

a30jjw00000110
