SEAT WEIGHT SENSOR CONTROL MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.]

id0810b4713900

Purpose

Function

Passenger status determination function

•  The seat weight sensor control module determines the front passenger’s seat status as follows based on the signal from the seat weight sensor and the front passenger’s seat belt status.

Detected weight	Front passenger’s seat belt status	Determined result
Approx. 42 kg {93 lb} or more	Fastened	Adult
	Unfastened	Adult
Approx. 30 kg {66 lb} or less	Fastened	Child (including child-restraint seat)
	Unfastened	Child (including child-restraint seat)
Approx. 0 kg {0 lb}	Fastened	Child (including child-restraint seat)
	Unfastened	Empty

Determined information transmitting function

•  The seat weight sensor control module sends the determined results to the SAS control module.

Construction

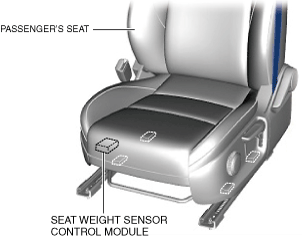

•  The seat weight sensor control module is located on the backside of the front passenger’s seat cushion.

ac30zn00000715

Operation

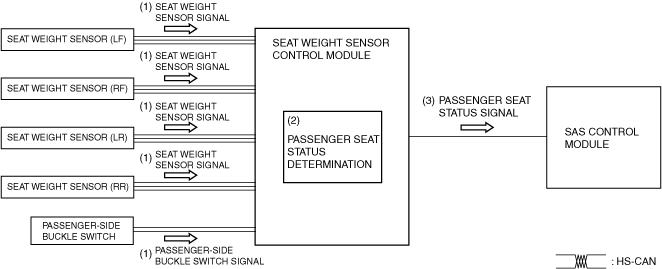

1.  The seat weight sensor control module determines (2) the front passenger’s seat status based on the signals (1) from the seat weight sensor and the front passenger’s buckle switch.

2.  The seat weight sensor control module sends (3) the front passenger’s seat status signal to the SAS control module.

Note

•  The SAS control module performs air bag system control based on the signal sent from the seat weight sensor control module. (See PASSENGER SENSING SYSTEM [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.].)

am3zzn00007551
