AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)]
id0810b9701700
-
Warning
-
<<High voltage>>
• Vehicles damaged in an accident could have electrical leakage due to internal damage of the high voltage battery. If servicing is carried out under electrical leakage conditions, it could cause electrical shock and result in serious injury or, in the worst case, death.
• Refer to [Handling high voltage battery on damaged vehicle] in [DAMAGED VEHICLE HANDLING] in the general information and determine if an internal inspection of the high voltage battery is necessary.(See
DAMAGED VEHICLE HANDLING [(E)].) Perform servicing only if an internal inspection of the high voltage battery is unnecessary. If it is determined that an internal inspection of the high voltage battery is necessary, contact the technical assistance for your market without performing servicing.
-
Note
-
• The SRS air bag system can be identified by whether or not the seat track position sensor is present.
-
― Standard deployment control system: Without seat track position sensor
― Two-step deployment control system: With seat track position sensor
SAS control module
Handling
• When connecting or disconnecting the SAS control module connector, a person charged with static electricity could accidentally activate (deploy) the SAS air bag system. Before connecting or disconnecting the SAS control module connector, discharge any charged static electricity from your body.
• If the SAS control module is removed or the SAS control module connector is disconnected with the main power switched ON (READY off or on), the sensor in the SAS control module may activate, causing the SRS air bag system to activate (deploy) and cause injury. Before removing the SAS control module or disconnecting the SAS control module connector, always switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• Connecting the SAS control module connector without securing the SAS control module can cause the sensor in the SAS control module to malfunction, causing the SRS air bag system to unexpectedly activate (deploy) and cause injury. Therefore, before connecting the connector, securely fix the SAS control module to the vehicle.
Frontal or side collision
• When the SRS air bag system is activated (deployed) due to a collision, there is a possibility that the SAS control module may have an internal malfunction even though it does not appear to be damaged or deformed. If the SAS control module is reused, the SRS air bag system may not activate (deploy) properly and may cause a serious accident. When the following devices are activated (deployed), be sure to replace the SAS control module with a new module.
-
― Driver-side air bag
― Passenger-side air bag
― Knee air bag
― Side air bag module for front passenger
― Far side air bag
― Side air bag module for rear passenger
― Curtain air bag
― Front pre-tensioner seat belt
― Rear pre-tensioner seat belt
Crash zone sensor
Handling
• If the crash zone sensor is removed or the crash zone sensor connector is disconnected with the main power switched ON (READY off or on), the driver-side air bag, passenger-side air bag, and pre-tensioner seat belt may activate (deploy) and cause injury. Before removing the crash zone sensor or disconnecting the crash zone sensor connector, always switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• If the crash zone sensor is subjected to shock or disassembled, the driver-side air bag, passenger-side air bag, or pre-tensioner seat belt may activate (deploy) unexpectedly and cause injury, or the system may fail to operate normally and cause a serious accident. Do not apply shock to or disassemble the crash zone sensor.
Frontal collision
• When the driver-side air bag, the passenger-side air bag, or the pre-tensioner seat belt are activated (deployed) due to a collision, there is a possibility that the crash zone sensor may have an internal malfunction even though it does not appear to be damaged or deformed. If the crash zone sensor is reused, the driver-side air bag, passenger's air bag, or pre-tensioner seat belt may not activate (deploy) properly and may cause a serious accident. Be sure to replace the crash zone sensor with a new sensor.
Side air bag sensor
Handling
• If the side air bag sensor is removed or the side air zone sensor connector is disconnected with the main power switched ON (READY off or on), the side air bag, curtain air bag, and pre-tensioner seat belt may be activated (deployed) and cause injury. Before removing the side air bag sensor or disconnecting the side air bag sensor connector, always switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• If the side air bag sensor is subjected to shock or the sensor is disassembled, the side air bag, curtain air bag, or pre-tensioner seat belt may activate (deploy) unexpectedly and cause injury, or the system may fail to operate normally and cause a serious accident. Do not apply shock to or disassemble the side air bag sensor.
Side collision
• When the air bag is activated (deployed) due to a collision, there is a possibility that the side air bag sensor may have an internal malfunction even though it does not appear to be damaged or deformed. If the side air bag sensor is reused, the side air bag, curtain air bag, or pre-tensioner seat belt may not activate (deploy) properly and may cause a serious accident. Be sure to replace the side air bag sensor with a new sensor.
Pressure sensor
Handling
• If the pressure sensor is removed or the pressure sensor connector is disconnected with the main power switched ON (READY off or on), the side air bag, curtain air bag, and pre-tensioner seat belt may be activated (deployed) and cause injury. Before removing the pressure sensor or disconnecting the pressure sensor connector, always switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• If the pressure sensor is subjected to shock or the sensor is disassembled, the side air bag, curtain air bag, or pre-tensioner seat belt may activate (deploy) unexpectedly and cause injury, or the system may fail to operate normally and cause a serious accident. Do not apply shock to or disassemble the pressure sensor.
Side collision
• When the air bag is activated (deployed) due to a collision, there is a possibility that the pressure sensor may have an internal malfunction even though it does not appear to be damaged or deformed. If the pressure sensor is reused, the side air bag, curtain air bag, or pre-tensioner seat belt may not activate (deploy) properly and may cause a serious accident. Be sure to replace the pressure sensor with a new sensor.
Driver-side air bag module/passenger-side air bag module
Handling
• Before removing the air bag module or disconnecting the air bag module connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
•
If the activated (deployed) surface of an unactivated (undeployed) air bag module is placed face down, the air bag may activate (deploy) unexpectedly and cause injury. Unactivated (undeployed) air bag modules should always be placed with the activation (deployment) side up.
Inspection
•
When the driver-side air bag module or passenger-side air bag module is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the driver-side air bag module or passenger-side air bag module.
Knee air bag module
Handling
• Before removing the knee air bag module or disconnecting the knee air bag module connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
Inspection
•
When the knee air bag module is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the knee air bag module.
Side air bag module for front passenger
Handling
• Before removing the side air bag module for front passenger or disconnecting the side air bag module for front passenger connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• When the side air bag module for front passenger is activated (deployed) due to a collision, the inside of the seat back (pad, frame) may be damaged. If the seat back is reused, the air bag may not activate (deploy) normally, which may cause a serious accident. When the side air bag module for front passenger is activated (deployed), be sure to replace the side air bag module for front passenger and seat back (pad, frame, trim) with new parts as a single unit. After maintenance, check that the seat is working properly and that the harness is not pinched.
Inspection
•
When the side air bag module for front passenger is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the side air bag module for front passenger.
Far side air bag module
Handling
• Before removing the far side air bag module or disconnecting the far side air bag module connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
• When the far side air bag module is activated (deployed) due to a collision, the inside of the seat back (pad, frame) may be damaged. If the seat back is reused, the air bag may not activate (deploy) normally, which may cause a serious accident. When the far side air bag module is activated (deployed), be sure to replace the far side air bag module and seat back (pad, frame, trim) with new parts as a single unit. After maintenance, check that the seat is working properly and that the harness is not pinched.
Inspection
•
When the far side air bag module is individually inspected using a tester, it may be activated (deployed) by center tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the far side air bag module.
Side air bag module for rear passenger
Handling
• Before removing the side air bag module for rear passenger or disconnecting the side air bag module for rear passenger connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
Inspection
•
When the side air bag module for rear passenger is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the side air bag module for rear passenger.
Curtain air bag module
Handling
• Before removing the curtain air bag module or disconnecting the curtain air bag module connector, switch the main power OFF, disconnect the negative lead-acid battery terminal, and then wait for 1 min or more to allow the backup power supply of the SAS control module to deplete its stored power.
Inspection
•
When the curtain air bag module is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the curtain air bag module.
Front pre-tensioner seat belt
Inspection
•

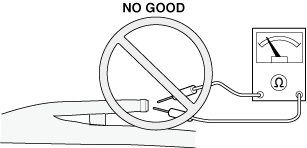

When the front pre-tensioner seat belt is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the front pre-tensioner seat belt.
Rear pre-tensioner seat belt
Inspection
•
When the rear pre-tensioner seat belt is individually inspected using a tester, it may be activated (deployed) by the tester current and cause injury. Always use the on-board diagnostic function to diagnose malfunctions when inspecting the rear pre-tensioner seat belt.
