HOOD REMOVAL/INSTALLATION

id091000040200

Warning

•  Removing the hood without securing it could cause the hood to fall and cause serious injury. Always perform the procedure with at least another person to prevent the hood from falling.

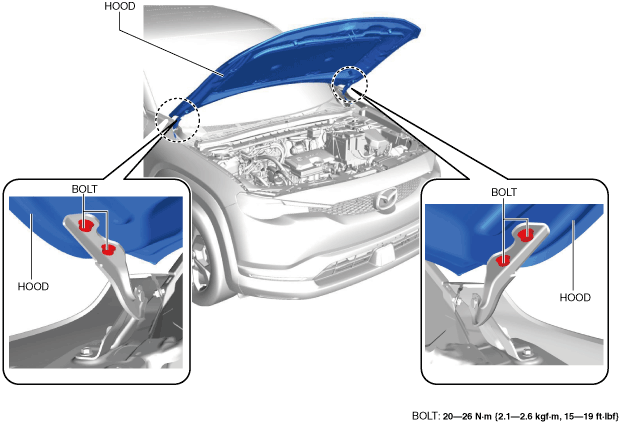

1.  Remove the bolts and remove the hood.

a30zzw00000422

2.  Install in the reverse order of removal.
