HOOD DISASSEMBLY/ASSEMBLY

id091000040300

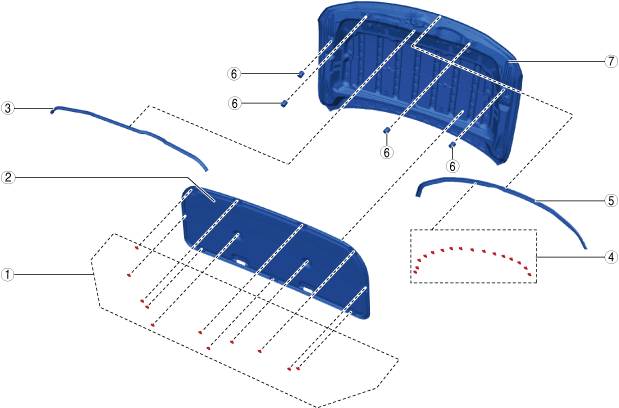

1.  Disassemble in the order shown in the figure.

a30zzw00004466

1	Fasteners
2	Hood insulator
3	Shroud seal weatherstrip
4	Fasteners
5	Parting seal weatherstrip
6	Stop rubber
7	Hood

2.  Assemble in the reverse order of disassembly.
