CHARGE LID REMOVAL/INSTALLATION

id091000040600

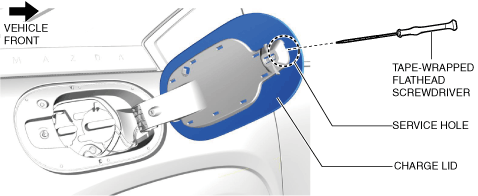

1.  Insert a tape-wrapped flathead screwdriver into the service hole.

a30zzw00000429

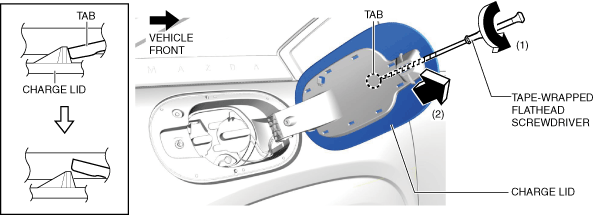

2.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and detach the tab.

a30zzw00000430

3.  Move the charge lid in the direction of arrow (2) shown in the figure with the tab detached and remove it.

4.  Install in the reverse order of removal.
