FRONT OVER FENDER REMOVAL/INSTALLATION

id091000042200

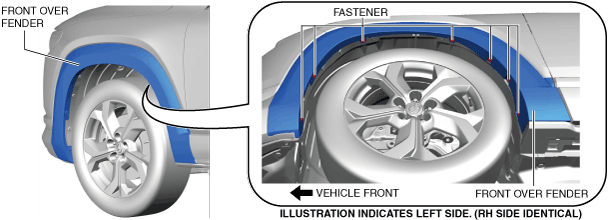

1.  Remove the fasteners.

a30zzw00000500

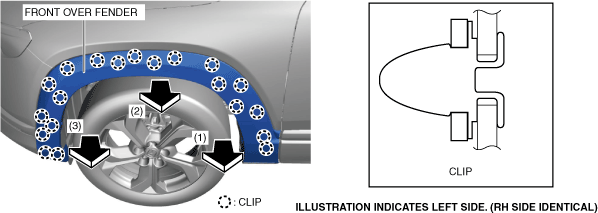

2.  Pull the front over fender in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clips.

a30zzw00000501

3.  Remove the clips remaining on the vehicle body and install them to the front over fender.

4.  Install in the reverse order of removal.

Warning

•  If the front over fender is installed with damaged clips, it may fall off during driving, leading to a serious accident. Replace any damaged clips with new ones.
