REAR OVER FENDER BRACKET REMOVAL/INSTALLATION

id091000042400

1.  Remove the rear over fender. (See REAR OVER FENDER REMOVAL/INSTALLATION.)

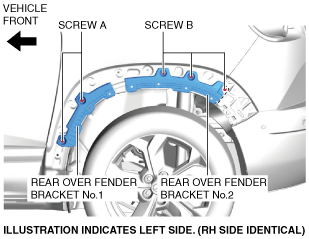

2.  Remove screws A.

a30zzw00000504

3.  Remove the rear over fender bracket No.1.

4.  Remove screws B.

5.  Remove the rear over fender bracket No.2.

6.  Install in the reverse order of removal.
