POWER OUTER MIRROR

id091200704200

Outline

• The power outer mirrors move in the left/right, up/down, and the retract/return directions to assure visibility at the rear of the vehicle.

Function

• The door-electrical supply unit controls the following functions to assure visibility at the rear of the vehicle.

― Outer mirror glass up/down, left/right adjustment

― Power outer mirror retract/return

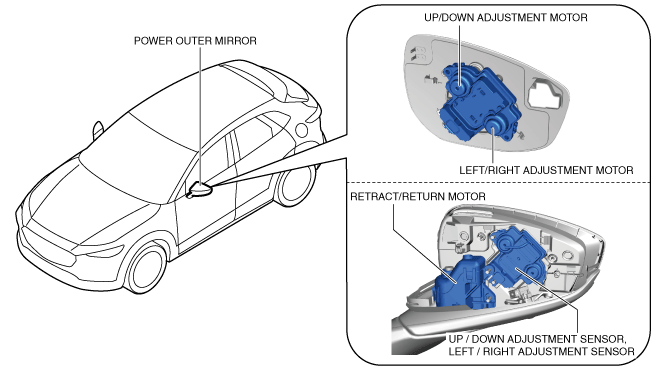

Construction

• The following parts are built into the power outer mirror.

― Up/down adjustment motor

― Left/right adjustment motor

― Retract/return motor (With retractable outer mirror)

― Up/down adjustment sensor (With driver-side power seat)

― Left/right adjustment sensor (With driver-side power seat)

a30zzn00001131

Operation

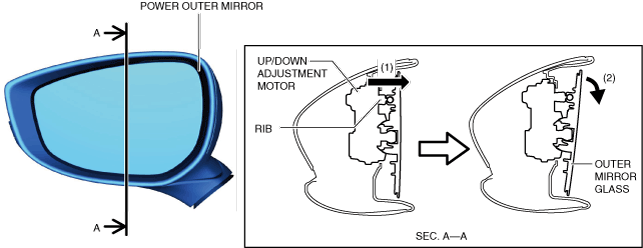

Up/down adjustment (Example: power outer mirror is operated downward)

1. The rib operates (1) according to the motor operation.

2. The outer mirror glass operates (2) in the downward direction according to the rib operation.

3. When the outer mirror glass operates in the down direction, the resistance inside the up/down adjustment sensor increases.

ac30zn00000394

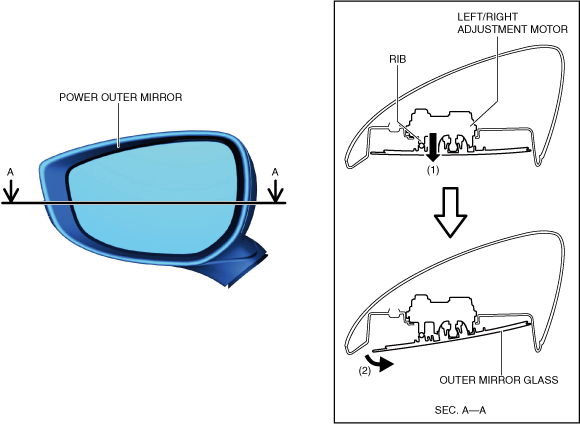

Left/right adjustment (Example: power outer mirror is operated in right direction)

1. The rib operates (1) according to the motor operation.

2. The outer mirror glass operates (2) in the right direction according to the rib operation.

3. When the right side outer mirror glass operates in the right direction, the resistance inside the left/right adjustment sensor decreases.

When the left side outer mirror glass operates in the right direction, the resistance inside the left/right adjustment sensor increases.

ac30zn00000395

Retract/return (With retractable outer mirror) (Example: retract operation)

1. When the motor rotates counterclockwise (1), the outer mirror operates in retract direction (2).

am3zzn00007904
