AUTO-DIMMING REARVIEW MIRROR/AUTO-DIMMING OUTER MIRROR [(E)]

id0912007044x2

Purpose

• The auto-dimming rearview mirror and the auto-dimming outer mirror (driver's side) prevent the driver from being dazzled by light from vehicles at the rear.

Function

• The auto-dimming rearview mirror changes the reflection rate of the auto-dimming rearview mirror between 4% and 55% according to the level of the surrounding light and the glare level from vehicles at the rear.

• The auto-dimming outer mirror are linked with the auto-dimming rearview mirror operation and the reflection rate of the outer mirrors is changed to 15%. (with auto-dimming outer mirror)

Note

• The reflection rate of the auto-dimming rearview mirror is fixed at 50% or more when the selector lever is shifted to the R position.

Glare level detection function

• The auto-dimming rearview mirror detects the level of the surrounding light and glare from vehicles at the rear using the light sensor.

Structural View

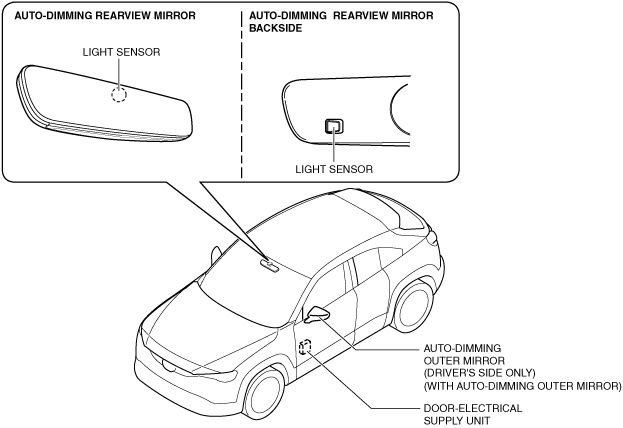

L.H.D.

a30zzn00000133

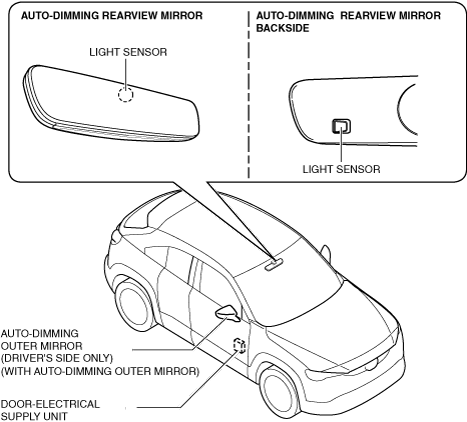

R.H.D.

a30zzn00002115

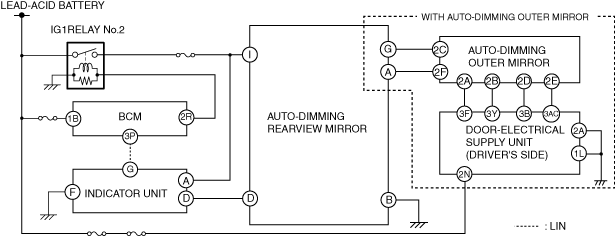

System Wiring Diagram

a30zzn00002113

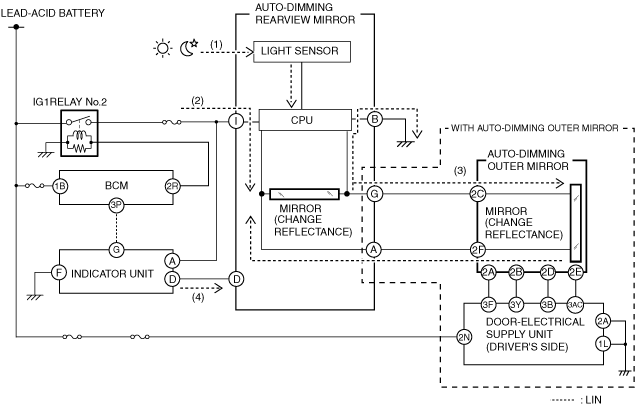

Operation

1. When the auto-dimming rearview mirror switch is turned on, the auto-dimming rearview mirror initiates the detection of the glare level.

2. The auto-dimming rearview mirror detects (1) the level of the surrounding light and glare level from vehicles at the rear using the light sensor.

3. The auto-dimming rearview mirror changes (2) the voltage input to the auto-dimming rearview mirror and the auto-dimming outer mirror according to the level of the surrounding light and the glare level from vehicles at the rear.

4. The auto-dimming rearview mirror changes the reflection rate between 4% and 55% according to the input voltage.

5. The auto-dimming outer mirror are linked with the auto-dimming rearview mirror operation and the reflection rate of the outer mirrors is changed to 15% (3).

6. When the auto-dimming rearview mirror receives an R position signal from the indicator unit, the reflection rate of the auto-dimming rearview mirror is fixed (4) at 50% or more.

a30zzn00002114
