SEAT WARMER UNIT INSPECTION

id091300700200

Note

•  When the seat warmer switch is turned on with the main power switched ON (READY on), the seat warmer system operates.

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

a30zzw00000937

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

Driver-side

Front seat cushion

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

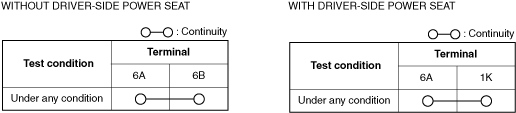

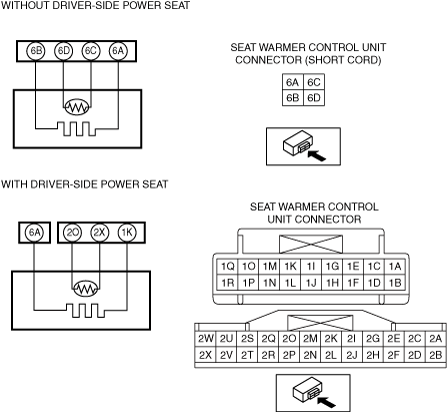

4.  Inspect for continuity between the driver-side seat warmer unit connector terminal 6A—6B (without driver-side power seat) / 6A—1K (with driver-side power seat).

a30zzw00000938

a30zzw00000939

―  If not as indicated in the table, replace the front seat cushion pad.(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

5.  Measure the resistance between the driver-side seat warmer unit connector terminals 6C and 6D (without driver-side power seat) / 2O and 2X (with driver-side power seat), and verify that the condition is as indicated in the table.

a30zzw00000940

•  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad.(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

Front seat back

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

4.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

a30zzw00000941

a30zzw00000942

―  If not as indicated in the table, replace the front seat back pad.(See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [(E)].)

Passenger-side

Front seat cushion

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

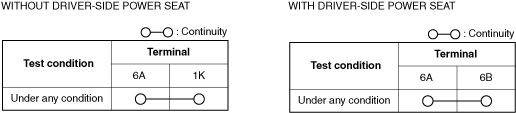

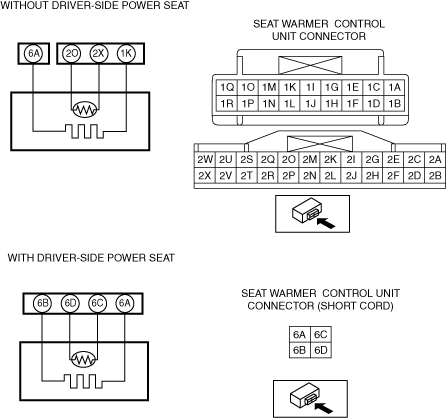

4.  Inspect for continuity between the passenger-side seat warmer unit connector terminal 6A—1K (without driver-side power seat) / 6A—6B (with driver-side power seat).

a30zzw00000943

a30zzw00000944

―  If not as indicated in the table, replace the front seat cushion pad.(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

5.  Measure the resistance between the passenger-side seat warmer unit connector terminals 2O and 2X (without driver-side power seat) /,6C and 6D (with driver-side power seat), and verify that the condition is as indicated in the table.

a30zzw00000940

•  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad.(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

Front seat back

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

4.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

a30zzw00000945

a30zzw00000941

―  If not as indicated in the table, replace the front seat back pad.(See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [(E)].)
