OCCUPANCY SENSOR


id091300703000


Purpose, Function

•  The occupancy sensor detects the load on the seat area of the front seat cushions.

Construction

•  A driver-side occupancy sensor has adopted 6 pressure sensors. (With power seat system)
•  A passenger-side occupancy sensor has adopted 6 pressure sensors

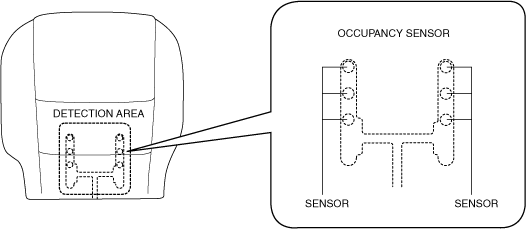

a30zzn00000173

Operation

•  The pressure sensors of the occupancy sensor turn on and off according to the weight applied to the sensor detection area.
