LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION

id091400700900

Liftgate Lock Actuator Inspection

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Apply lead-acid battery positive voltage and connect the ground to the liftgate latch and lock actuator terminals as indicated in the table below and verify the operation condition.

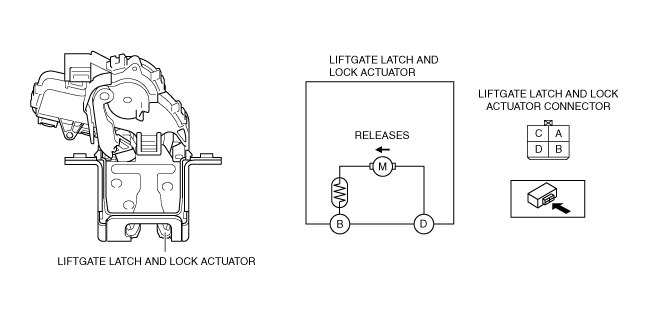

a30zzw00000777

Lead-acid battery terminal	Ground terminal	Operation
D	B	Release

•  If the operation cannot be verified, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Liftgate Latch Switch Inspection

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

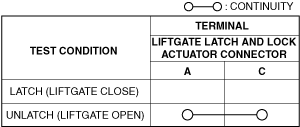

3.  Verify that the continuity is as indicated in the table.

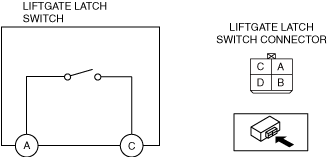

a30zzw00000778

a30zzw00000779

•  If not as indicated in the table, replace the replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

Note

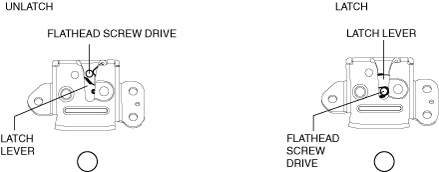

•  When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

ac9uuw00009343
