REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION

id091400701600

Note

•  A simple inspection of the remaining battery power of the remote transmitter can be performed by activating the battery voltage low warning.

•  The battery voltage low warning is performed via transmission between the remote transmitter and the vehicle. If the battery power of the remote transmitter is completely depleted, transmission between the remote transmitter and the vehicle is not established and the battery voltage warning is not activated.

•  If the main power can only be switched ON (READY off) when touching the power switch with the remote transmitter and the battery voltage low warning is not activated, the remote transmitter battery power may be completely depleted.

Operation Procedure For Battery Voltage Low Warning Indication

1.  Place the remote transmitter inside the vehicle and close all of the doors.

2.  Switch the main power ON (READY off or on).

3.  Switch the main power OFF.

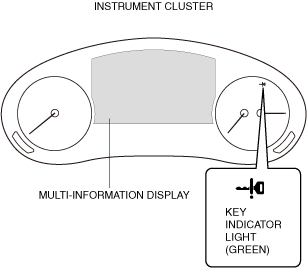

4.  Verify that the KEY indicator light (green) in the instrument cluster flashes or the warning does not display in the multi-information display.

a30zzw00000782

―  KEY indicator light (green) flashes for approx. 30 s, or warning displays in the multi-information display:

Replace the remote transmitter battery because the remote transmitter battery power is depleted. (See REMOTE TRANSMITTER ID CODE REGISTRATION.)
