STEERING LOCK UNIT [(E)]
id0914007036x2
Purpose
• The steering lock unit locks/unlocks the steering wheel based on the information from the body control module (BCM).
Function
• Locks/unlocks the steering wheel by operating the lock shaft based on the information from the body control module (BCM).

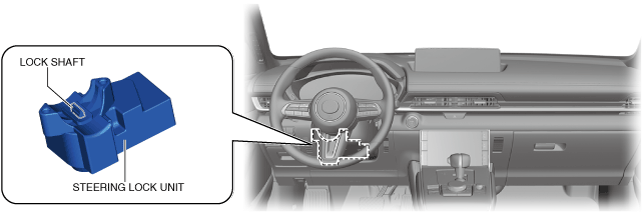

Structural View

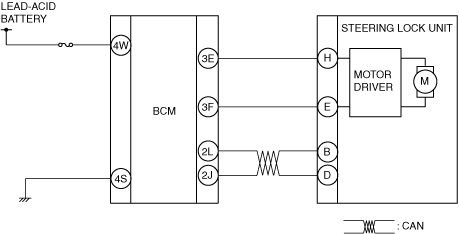

System Wiring Diagram
