KEYLESS ANTENNA [KEYLESS ENTRY SYSTEM]
id0914007038b3
Purpose
• Transmits a request signal and specifies the remote transmitter location.
Function
• The keyless antennas transmits request signals based on the signals from the LF control unit by using electromagnetic wave (125kHz).
Construction, Operation
• The antennas for request signal output form the request signal output range inside of the vehicle at 1 locations.

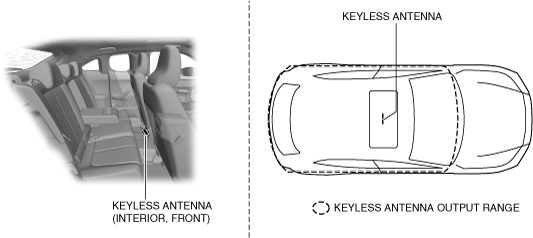

Request signal output range
-
• The keyless antennas for the vehicle interior (front) form the output range inside the vehicle.
