TOUCH SENSOR

id091400704000

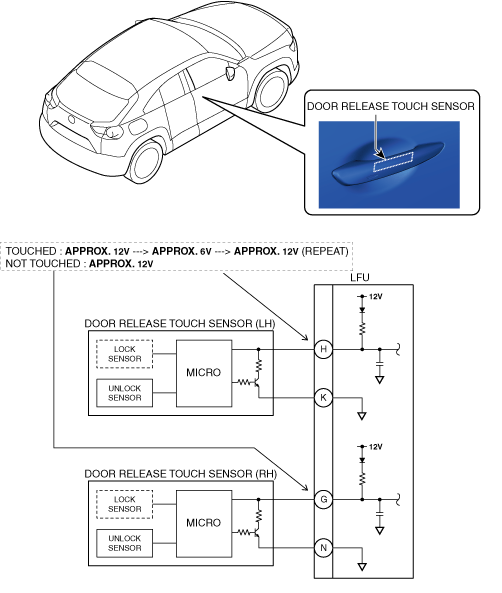

Door Release Touch Sensor

Purpose

•  Transmits the touch sensor operation of the user to the LF control unit.

Function

•  The door unlock signal is sent to the LF control unit by touching the touch sensor.

Construction, Operation

•  Installed on the outer handle of the driver-side/passenger-side front door.

•  When a capacitance change is detected by touching at the unlock area of the touch sensor, an output unlock signal is sent to the LF control unit.

a30zzn00000235

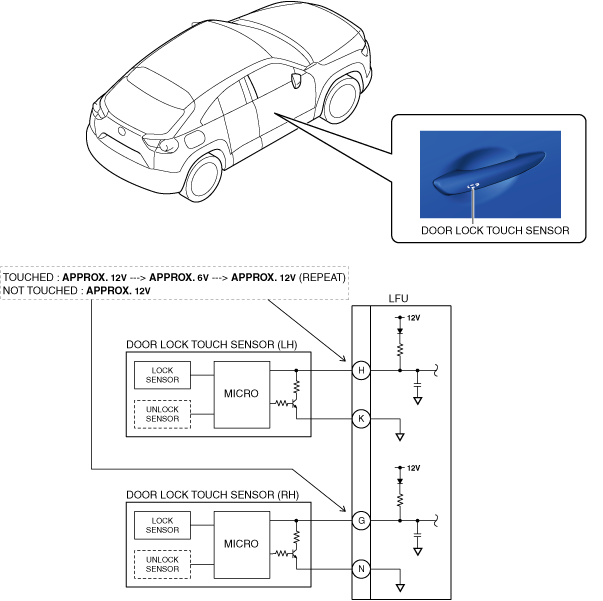

Door Lock Touch Sensor

Purpose

•  Transmits the touch sensor operation of the user to the LF control unit.

Function

•  The door lock signal is sent to the LF control unit by touching the touch sensor.

Construction, Operation

•  Installed on the outer handle of the driver-side/passenger-side front door.

•  When a capacitance change is detected by touching at the lock area of the touch sensor, an output lock signal is sent to the LF control unit.

a30zzn00000236
