INTRUDER SENSOR [(E)]

id0914007051x2

Purpose

• A cabin intrusion is detected.

Function

• The intruder sensor detects movement in the vehicle by ultrasonic waves and sends the detection signal to the body control module (BCM).

Construction

• The intruder sensor is located in center part of the roof the forward part of the roof.

a30zzn00001624

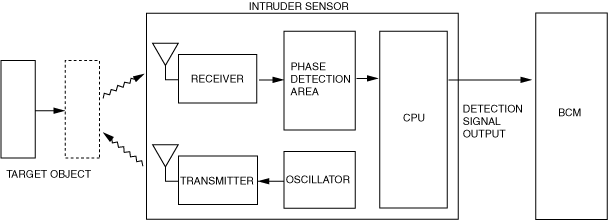

Operation

1. When the theft-deterrent system is standby mode, the intruder sensor outputs ultrasonic waves in the passenger compartment. The intruder sensor detects differences in the ultrasonic waves (reflected waves) that are output and bounced off a target object.

2. When a difference in reflected waves occurs by movement in the vehicle (intruder), the CPU calculates the level of difference.

3. If the differences meet certain criteria, the intruder sensor sends a detection signal to the body control module (BCM).

am3zzn00009582
