Caution
• If the spring is removed forcefully, the hook located at the spring installation area may be damaged. Carefully remove the spring so as not to damage the hook.
a30zzw00000054
|
DEFLECTOR REMOVAL/INSTALLATION
id091500700300
1. Fully open the glass panel.

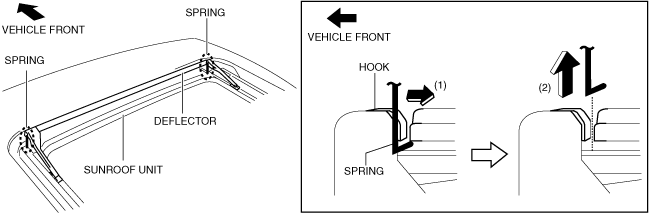

2. Move the spring in the direction of arrow (1) as shown in the figure and remove the spring in the direction of arrow (2).
a30zzw00000054
|

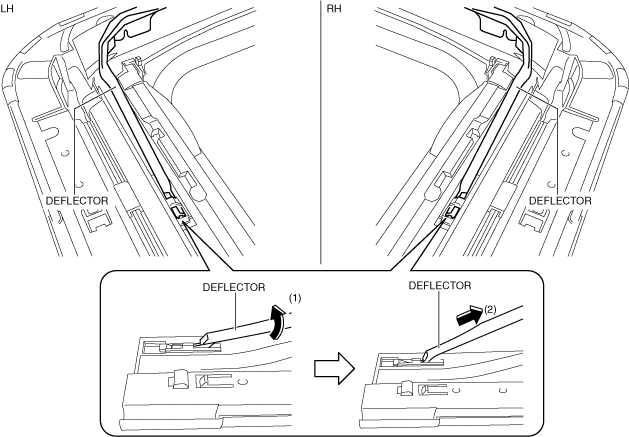

3. Remove the deflector while lifting it up in the direction of arrow (1) shown in the figure and moving it in the direction of arrow (2).
a30zzw00000055
|
4. Install in the reverse order of removal.
