GLASS PANEL ADJUSTMENT

id091500700500

1. Fully close the glass panel.

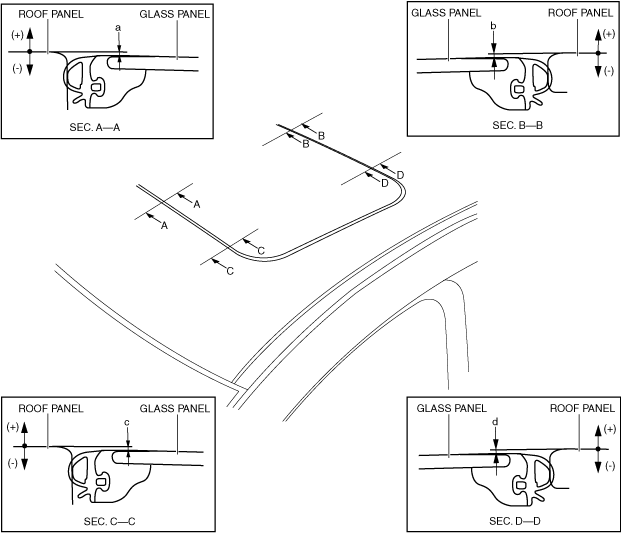

2. Measure the gap and height difference between the glass panel and the body.

3. Loosen the installation screws and adjust the glass panel.

a30zzw00000028

Standard clearance

a: -0.3—2.3 mm {-0.01—0.09 in}

B: -0.5—2.1 mm {-0.01—0.08 in}

c: -0.5—2.1 mm {-0.01—0.08 in}

d: -0.8—1.8 mm {-0.03—0.07 in}

4. Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION.)

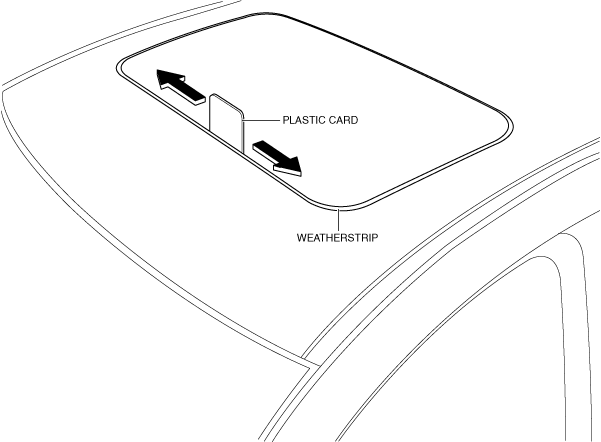

5. When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the directions of the arrows shown in the figure, verify that resistance with the plastic card can be felt.

a30zzw00000029

• If the glass panel is not sealed, perform Steps 3—4 and adjust again.
