SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500700700

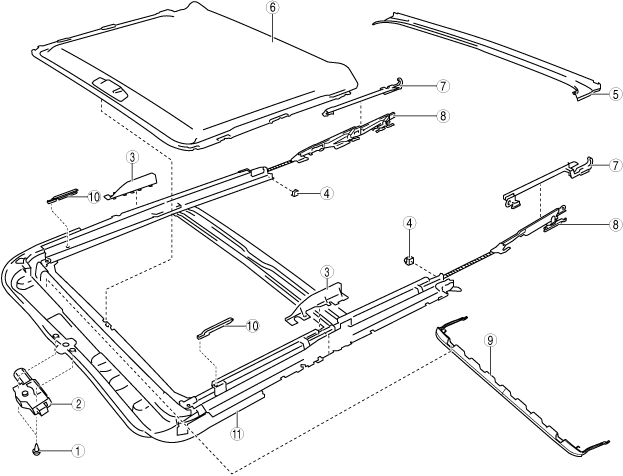

1.  Disassemble in the order indicated in the table.

a30zzw00006016

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note.)
7	Decoration link (See Decoration Link Disassembly Note.)
8	Front guide (See Front Guide Assembly Note.)
9	Deflector
10	Set plate
11	Sunroof frame

2.  Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

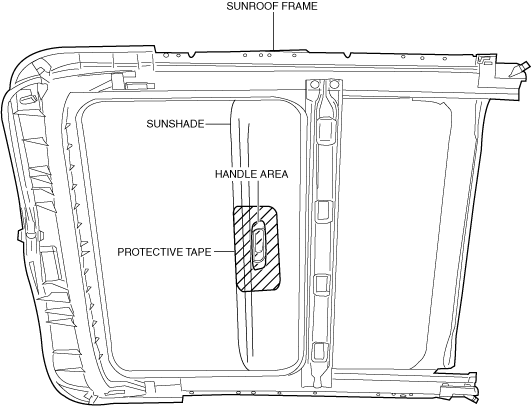

1.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the sunshade.

a30zzw00006017

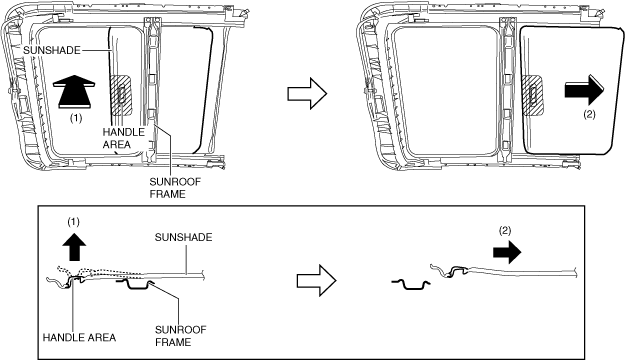

2.  Remove the sunshade while lifting it up in the direction of arrow (1) shown in the figure and sliding it in the direction of arrow (2).

Caution

•  The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

a30zzw00006018

Decoration Link Disassembly Note

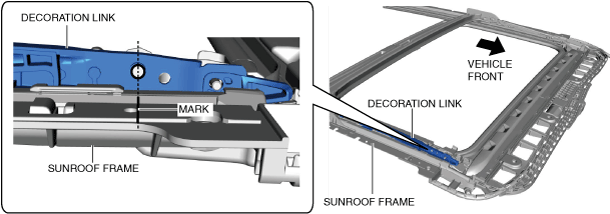

1.  Perform mark the position shown in the figure for correct positioning.

Caution

•  If the decoration link is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.

a30zzw00006019

Front Guide Assembly Note

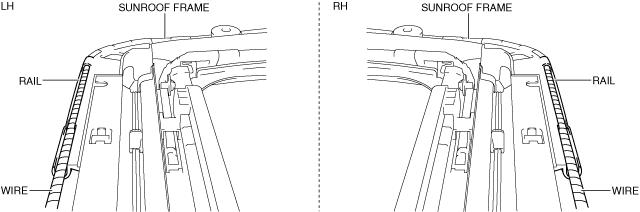

1.  To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.

a30zzw00006020
