SUNROOF MOTOR REMOVAL/INSTALLATION

id091500700800

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light.(See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

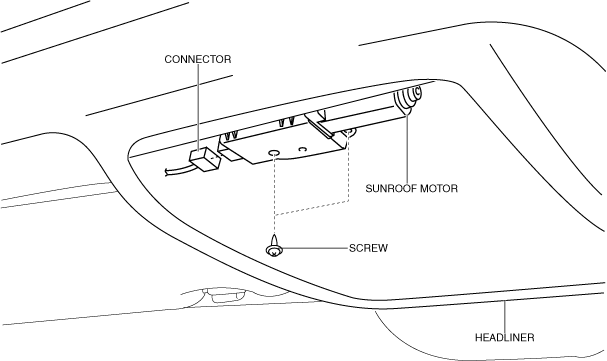

3.  Disconnect the connector.

a30zzw00000032

4.  Remove the screws.

5.  Remove the sunroof motor.

6.  Install in the reverse order of removal.
