SAIL GARNISH REMOVAL/INSTALLATION
id091600044600
Replacement parts
|
Clip
Quantity: 3
Location of use: Sail garnish
|
1. Fully open the front door glass.

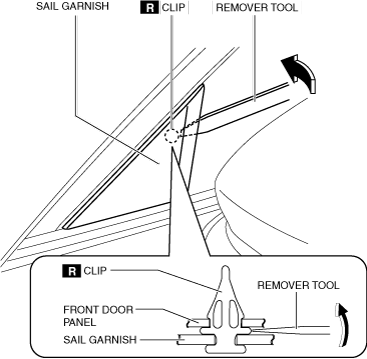

2. Insert the remover tool, move it in the direction of the arrow shown in the figure, and remove the clip.
a30zzw00000617
|

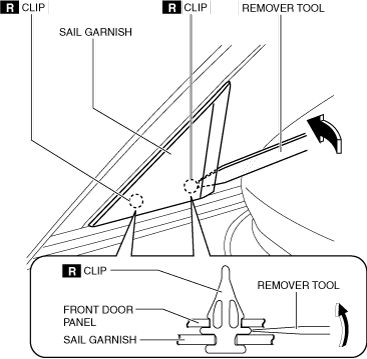

3. Insert the remover tool, move it in the direction of the arrow shown in the figure, remove the clips, and remove the sail garnish.
a30zzw00000618
|
4. Install in the reverse order of removal.
