SIDE GARNISH REMOVAL/INSTALLATION
id091600044900
Front Side Garnish
Replacement parts
|
Front side garnish
Quantity: 1
Location of use: Front door
|

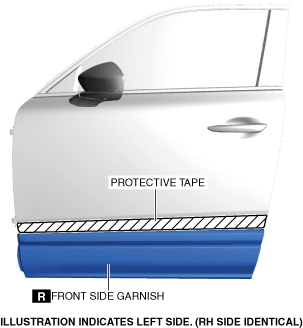

1. Apply protective tape to the area shown in the figure.
a30zzw00000622
|
2. Open the front door.

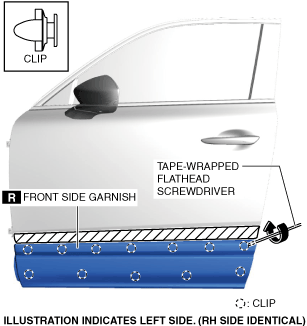

3. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
a30zzw00006864
|
4. Move the flathead screwdriver in the direction of the arrow shown in the figure and remove the clips from the rear of the vehicle.
5. Remove front side garnish.
6. Remove the clips remaining on the front door and attach them to the front side garnish.
7. Install in the reverse order of removal.
Rear Side Garnish
Replacement parts
|
Rear side garnish
Quantity: 1
Location of use: Rear door
|

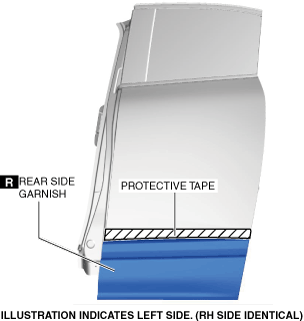

1. Apply protective tape to the area shown in the figure.
a30zzw00000624
|
2. Open the front door.

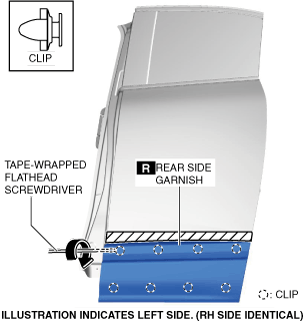

3. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
a30zzw00006865
|
4. Move the flathead screwdriver in the direction of the arrow shown in the figure and remove the clips from the front of the vehicle.
5. Remove the rear side garnish.
6. Remove the clips remaining on the rear door and attach them to the rear side garnish.
7. Install in the reverse order of removal.
