ROOF MOLDING REMOVAL

id091600045300

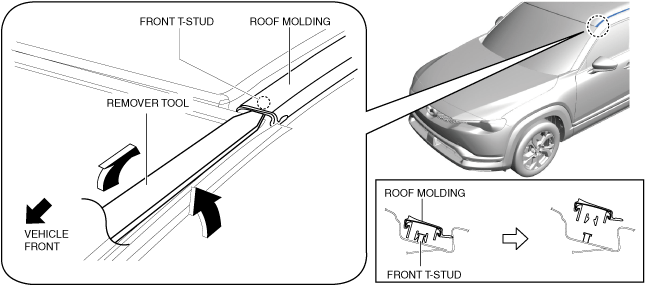

1.  Insert the remover tool into the position shown in the figure.

a30zzw00004310

2.  Move the remover tool in the direction of the arrow shown in the figure and detach the front T-stud from the roof molding.

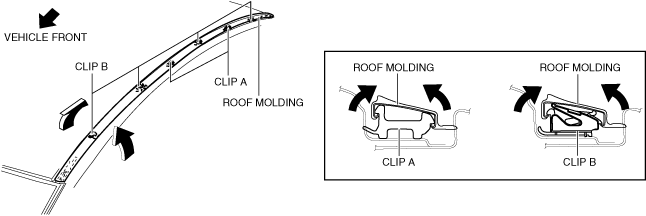

3.  Rotate the roof molding inward and outward while lifting, and detach the clips A and B from the roof molding in order from the front of the vehicle.

a30zzw00004483

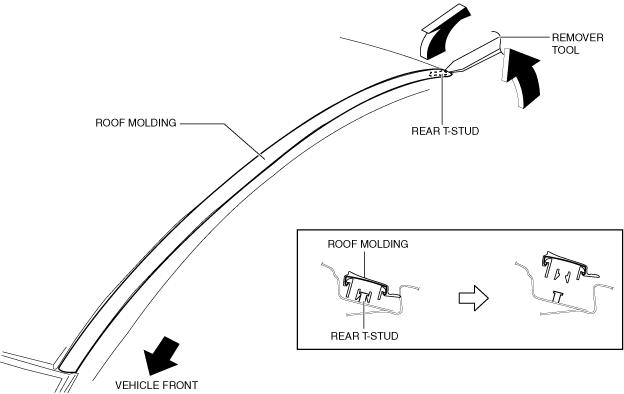

4.  Insert the remover tool into the position shown in the figure.

a30zzw00000634

5.  Move the remover tool in the direction of the arrow shown in the figure and detach the rear T-stud from the roof molding.

6.  Remove the roof molding.
