FRONT UNDER COVER No.2 REMOVAL/INSTALLATION

id091600046100

1.  Lift up the vehicle.

2.  Remove bolts (1).

a30zzw00000650

3.  Remove bolt (2).

4.  Remove bolt (3).

5.  Remove the fasteners.

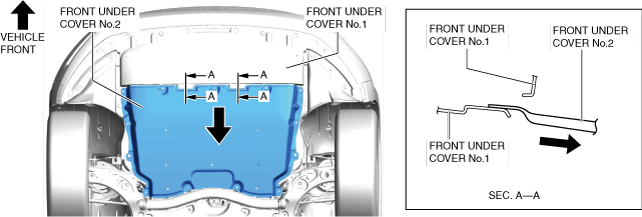

6.  Remove front under cover No.2 in the direction of the arrow shown in the figure.

a30zzw00002282

7.  Install in the reverse order of removal.
