REAR UNDER COVER REMOVAL/INSTALLATION

id091600046300

1.  Lift up the vehicle.

2.  Remove the screws.

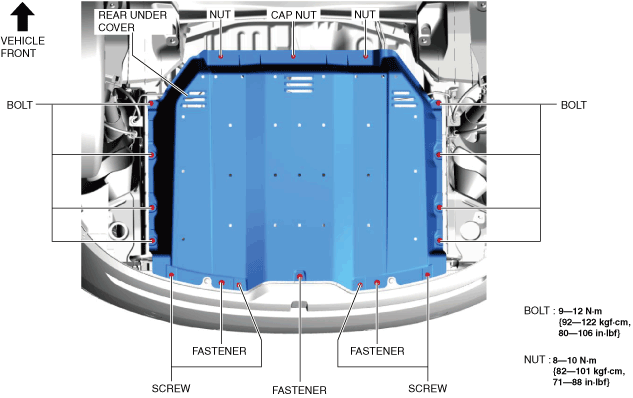

am30jw00002839

3.  Remove the bolts.

4.  Remove the fasteners.

5.  Remove the nuts.

6.  Remove the cap nut.

7.  Remove the rear under cover.

8.  Install in the reverse order of removal.
