CABIN SIDE WEATHERSTRIP INSTALLATION

id091600047100

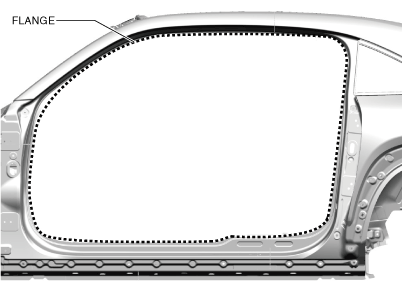

1.  Clean along the perimeter of the body panel flange.

a30zzw00004597

Note

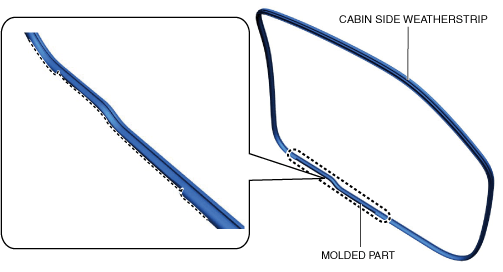

•  Install so that the molded part of the cabin side weatherstrip is on the side of the side sill.

a30zzw00006868

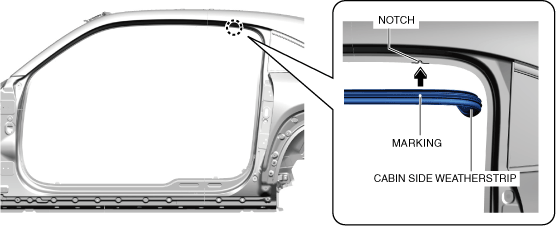

2.  Align the cabin side weatherstrip marking with the body panel notch and install.

a30zzw00004599

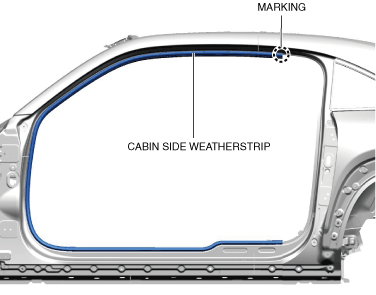

3.  Install the cabin side weatherstrip for the vehicle front from the marked position.

a30zzw00006869

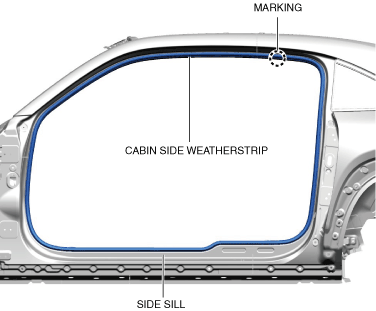

4.  Install the remaining cabin side weatherstrip and adjust the fit at the side sill.
