REAR SASH MOLDING REMOVAL/INSTALLATION


id091600052500

1.  Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

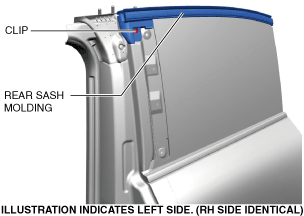

2.  Remove the clip.

a30zzw00000686

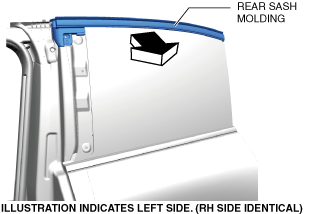

3.  Pull and remove the rear sash molding in the direction of the arrow shown in the figure.

a30zzw00000687

4.  Install in the reverse order of removal.
