METER HOOD REMOVAL/INSTALLATION

id091700047800

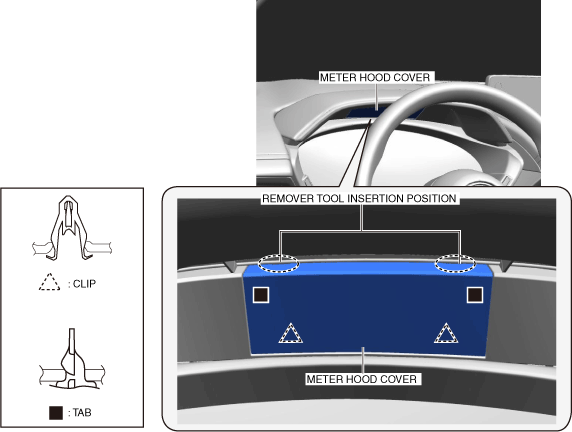

1.  Use the remover tool to detach the clips and tabs from the meter hood cover.

a30zzw00000065

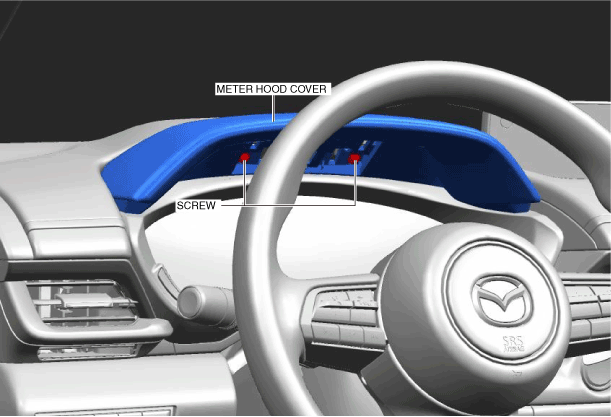

2.  Remove the screws.

a30zzw00005977

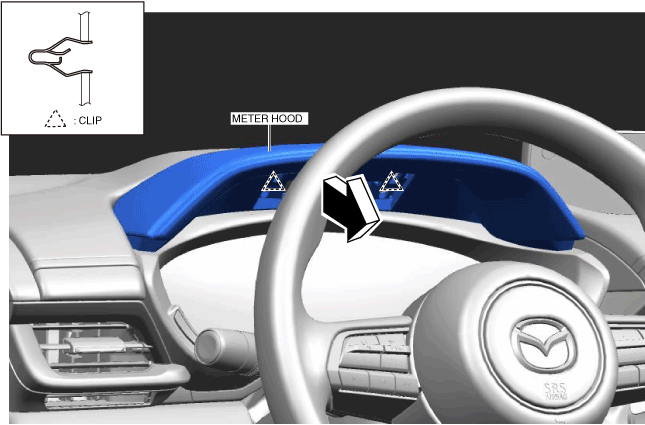

3.  Move the meter hood in the direction of the arrow shown in the figure and remove it while detaching the clips.

a30zzw00000067

4.  Remove the meter hood.

5.  Install in the reverse order of removal.
