SPEAKER GRILLE REMOVAL/INSTALLATION

id091700047900

Center Speaker Grille

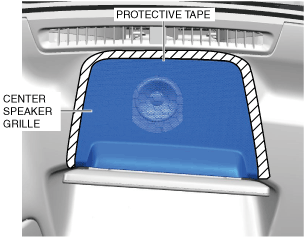

1.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

Caution

•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left applied for a long period of time, tape adhesive could remain on the protective tape attachment part when the protective tape is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

a30zzw00006024

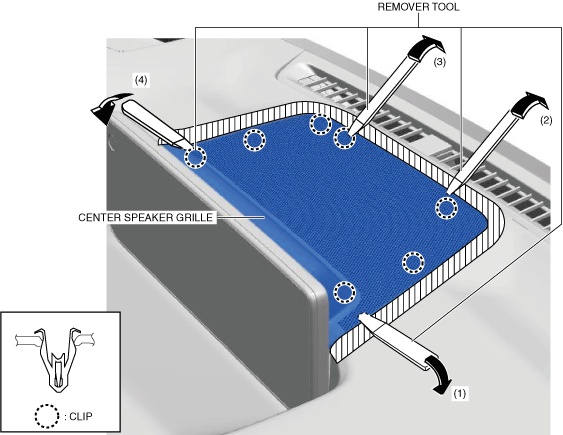

2.  Insert the remover tool into the positions shown in the figure, move it in the direction of the arrows in order from (1) to (4), and then detach the clips.

a30zzw00000236

3.  Remove the center speaker grille in the direction of the arrow shown in the figure.

a30zzw00000237

4.  Install in the reverse order of removal.

Front Door Speaker Grille

1.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

a30zzw00006025

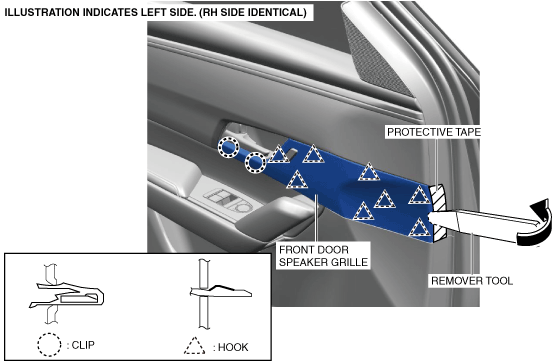

2.  Insert the remover tool into the position shown in the figure, move it in the direction of the arrow, and then detach the hook.

a30zzw00000403

3.  Remove the front door speaker grille.

4.  Install in the reverse order of removal.
