GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)]

id0917000482x2

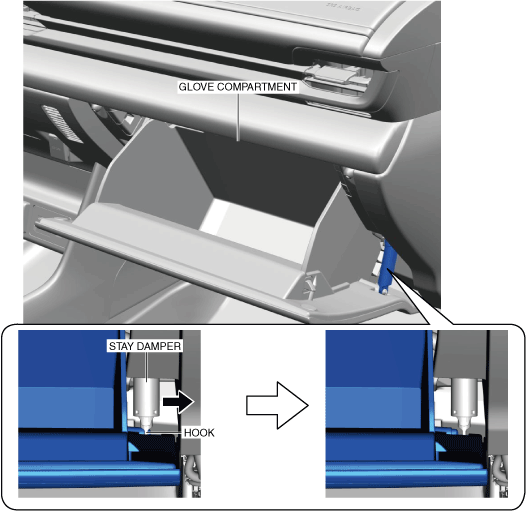

1.  Move the stay damper in the direction of the arrow shown in the figure and detach the hook.

Caution

•  If the glove compartment is closed without the stay damper attached to the hook, the stay damper may become damaged. Verify that the stay damper is attached to the hook before closing the glove compartment.

a30zzw00000060

2.  Press both ends of the glove compartment in the directions of the arrows shown in the figure and detach the hooks.

a30zzw00000061

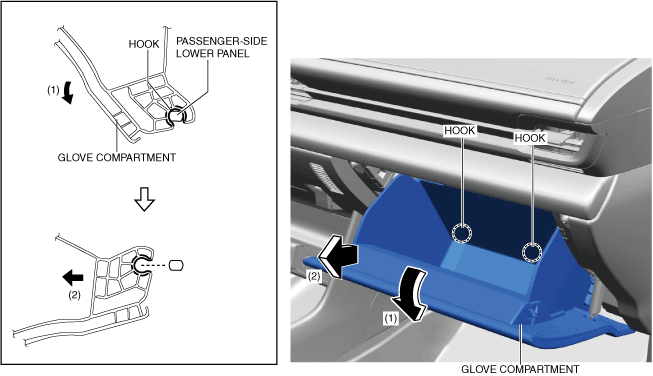

3.  Pull down the glove compartment in the direction of arrow (1) shown in the figure and move it in the direction of arrow (2) to detach the hooks from the passenger-side lower panel.

a30zzw00000062

4.  Remove the glove compartment.

5.  Install in the reverse order of removal.
