CONSOLE SIDE PANEL REMOVAL/INSTALLATION

id091700048900

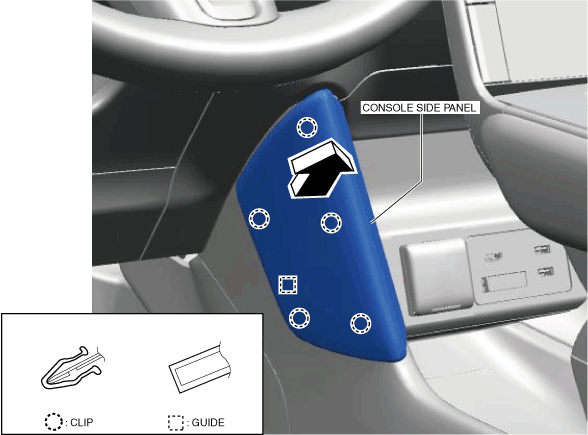

1.  Move the console side panel in the direction of the arrow shown in the figure and remove the clips and guide.

a30zzw00005980

2.  Remove the console side panel.

3.  Install in the reverse order of removal.
