FRONT PILLAR TRIM REMOVAL/INSTALLATION

id091700049800

Replacement parts

1.  Partially peel back the cabin side weatherstrip.

a30zzw00004611

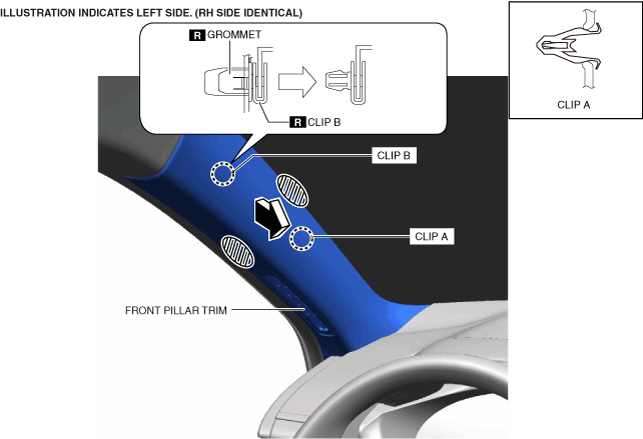

2.  Hold the shaded areas of the front pillar trim shown in the figure, move it in the direction of the arrow, and then detach clips A and B.

a30zzw00000151

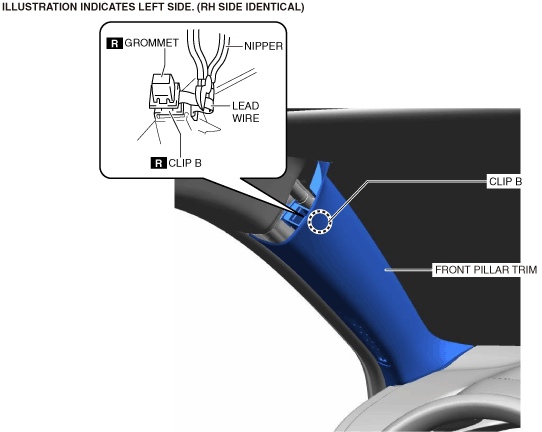

3.  Cut the lead wire connecting clip B and the grommet using a nipper.

a30zzw00000152

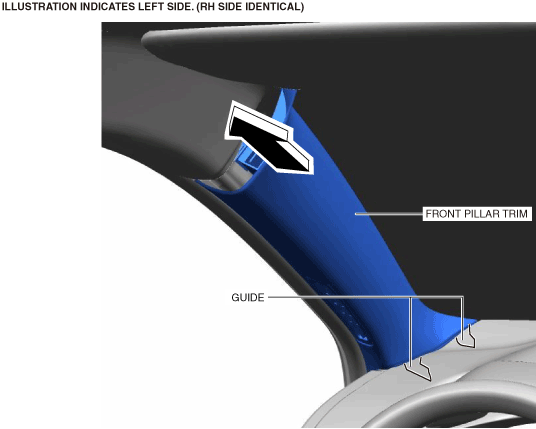

4.  Move the front pillar trim in the direction of the arrow shown in the figure and remove it while detaching the guides.

a30zzw00000153

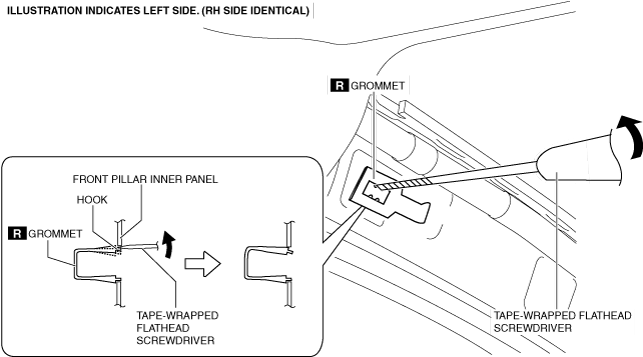

5.  Move the hook in the direction of the arrow shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

a30zzw00004474

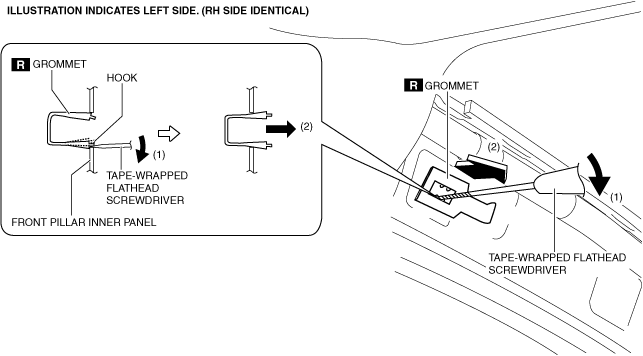

6.  Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

a30zzw00004475

7.  Install the new clip B and grommet to the front pillar trim.

8.  Install in the reverse order of removal.
