SCUFF PLATE REMOVAL/INSTALLATION

id091700050200

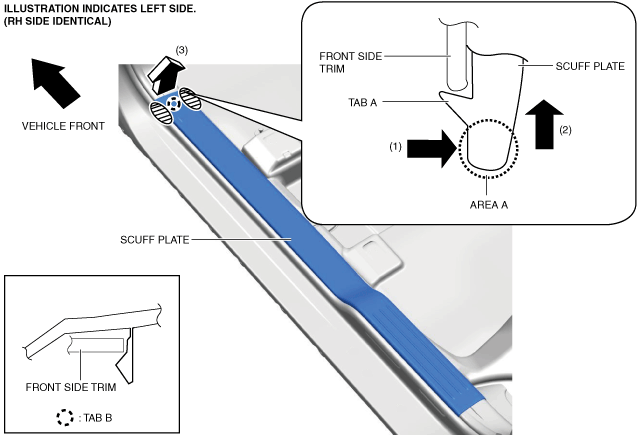

1.  Hold part A shown in the figure, open the scuff plate in the direction of arrow (1), and then detach tab A of the scuff plate from the front side trim while moving it in the direction of arrow (2).

a30zzw00000073

2.  Hold the shaded areas shown in the figure and detach tab B of the scuff plate from the front side trim while moving the scuff plate in the direction of arrow (3).

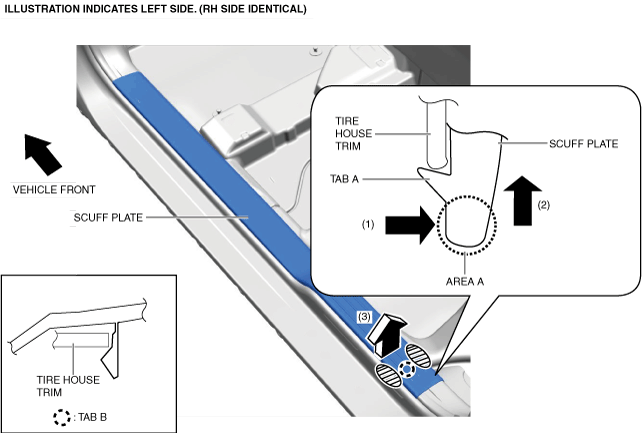

3.  Hold part A shown in the figure, open the scuff plate in the direction of arrow (1), and then detach tab A of the scuff plate from the tire house trim while moving it in the direction of arrow (2).

a30zzw00000074

4.  Hold the shaded areas shown in the figure and detach tab B of the scuff plate from the tire house trim while moving the scuff plate in the direction of arrow (3).

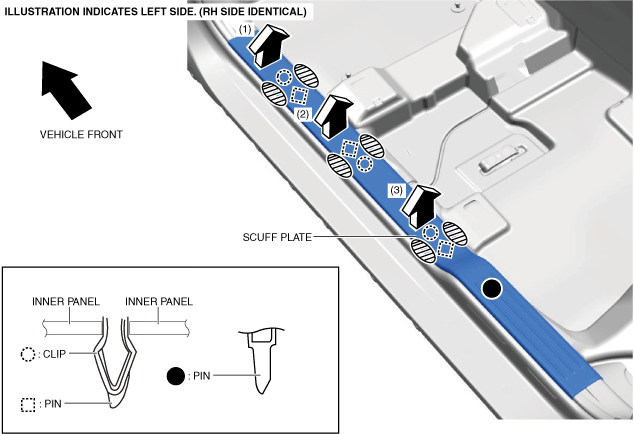

5.  Hold the shaded areas shown in the figure and move the scuff plate in the order of arrows (1), (2), and (3) while removing the clips from the inner panel.

a30zzw00000075

6.  Pull out the pins and remove the scuff plate.

7.  Install in the reverse order of removal.
