INNER GARNISH REMOVAL/INSTALLATION

id091700050300

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

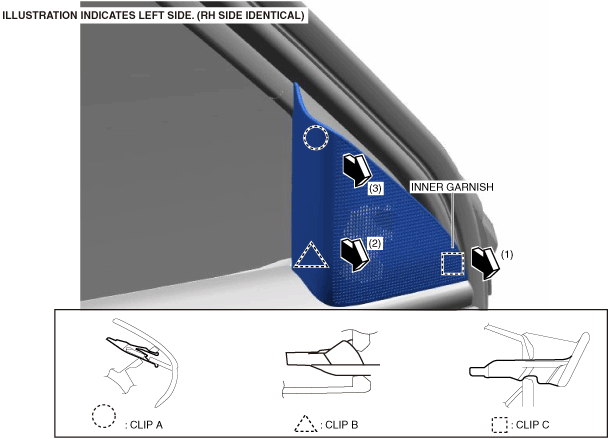

2.  Using the remover tool, move the inner garnish in the order of arrows (1), (2), and (3) as shown in the figure, and remove clips A, B, and C.

a30zzw00000229

3.  Disconnect the connectors.

a30zzw00000359

4.  Install in the reverse order of removal.

Note

•  When replacing the inner garnish, remove the tweeter. (See TWEETER REMOVAL/INSTALLATION.)
