LIFTGATE SIDE TRIM REMOVAL/INSTALLATION

id091700050800

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

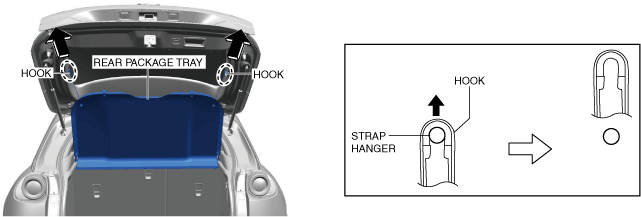

2.  Move the hooks in the direction of the arrow shown in the figure to detach them from the strap hangers.

a30zzw00000042

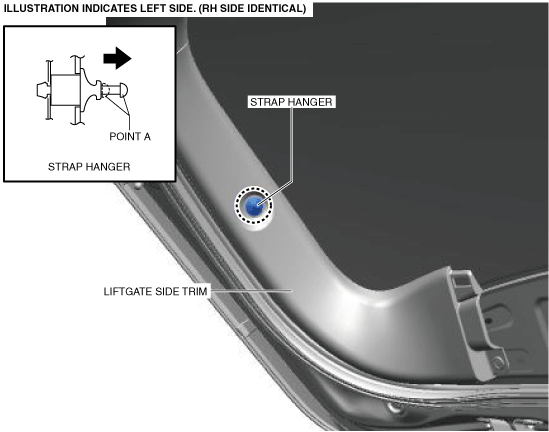

3.  Pull out point A of the strap hanger.

a30zzw00000043

4.  Remove the strap hanger.

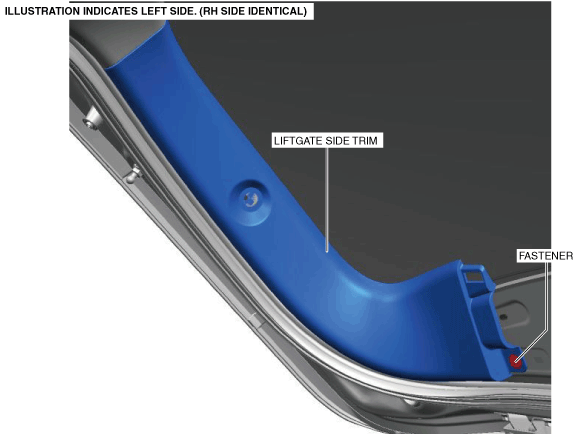

5.  Remove the fastener.

a30zzw00000044

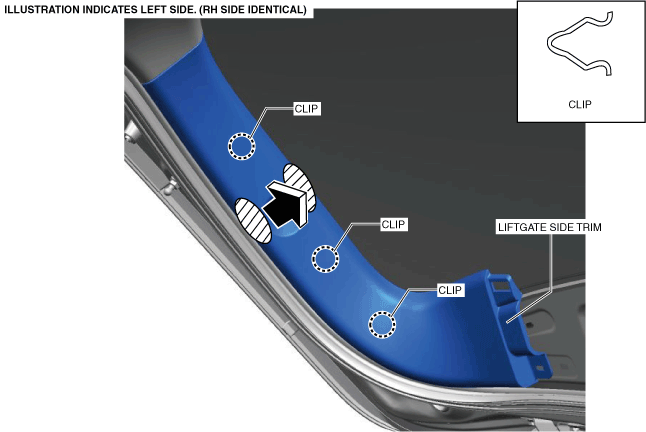

6.  Hold the shaded areas shown in the figure and detach the clips while moving the liftgate side trim in the direction of the arrow.

a30zzw00000045

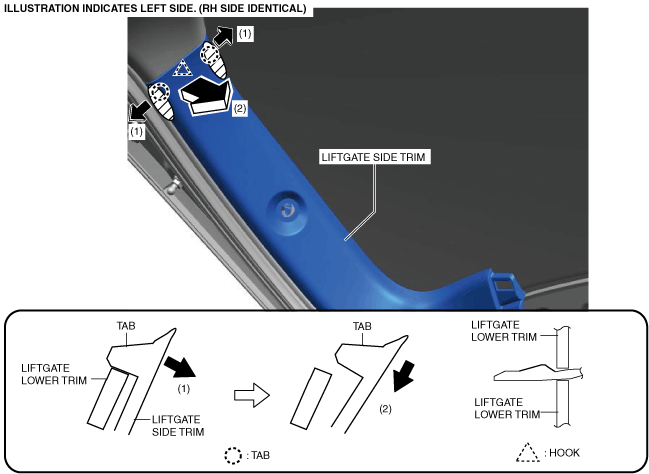

7.  Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate side trim in the direction of arrow (1) to detach the tabs, move the liftgate side trim in the direction of arrow (2) with the tabs detached and remove the liftgate side trim while detaching the hook.

a30zzw00000046

8.  Install in the reverse order of removal.
