REAR PACKAGE TRAY REMOVAL/INSTALLATION

id091700051000

1.  Move the hooks in the direction of the arrow shown in the figure to detach them from the strap hangers.

a30zzw00005992

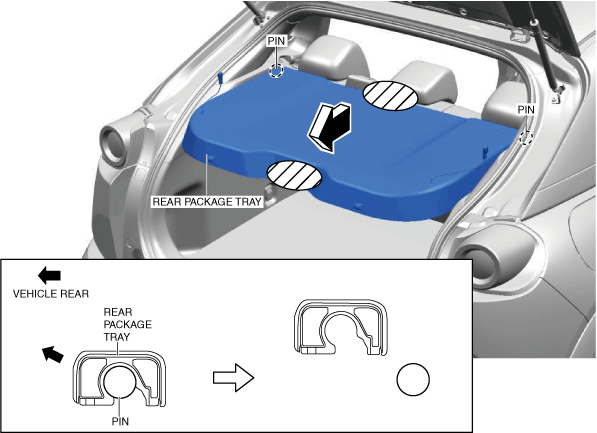

2.  Hold the shaded area shown in the figure, move the rear package tray in the direction of the arrow, and remove it from the pins.

a30zzw00000050

3.  Install in the reverse order of removal.
