TRUNK BOARD REMOVAL/INSTALLATION

id091700051200

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

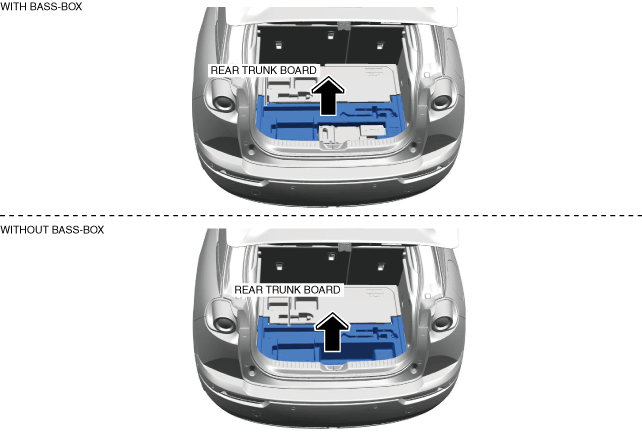

2.  Remove the rear trunk board in the direction of the arrow shown in the figure.

a30zzw00000052

3.  Remove the cap nuts.

a30zzw00000053

4.  Remove the front trunk board in the direction of the arrow shown in the figure.

5.  Install in the reverse order of removal.
