ASSIST HANDLE REMOVAL/INSTALLATION


id091700051700


Removal

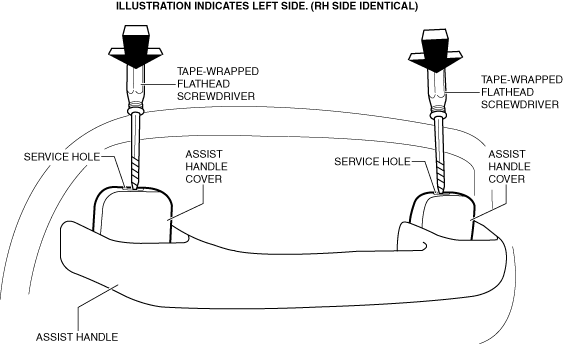

1.  Insert a tape-wrapped flathead screwdriver into the notch and remove the assist handle cover.

a30zzw00000370

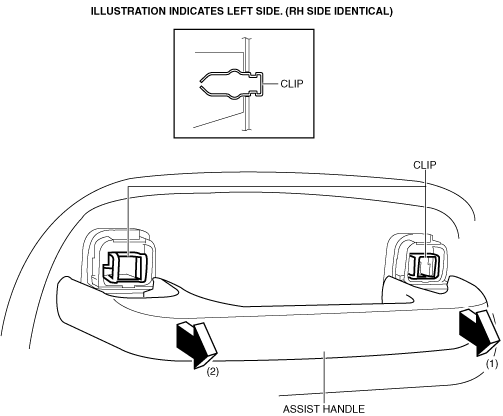

2.  Move the assist handle in the order of arrows (1) and (2) shown in the figure and remove it while detaching the clips.

a30zzw00000371

Note
•  Remove the assist handle by shaking it up and down.


Installation

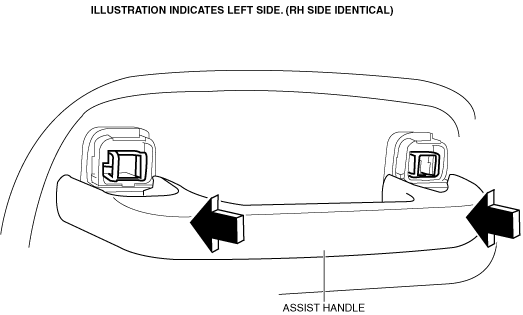

1.  Push the assist handle in the direction of the arrows shown in the figure and insert it into the body panel.

a30zzw00000372

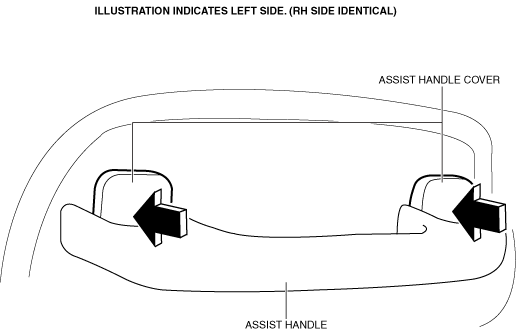

2.  Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.

a30zzw00000373
