GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION [(E)]

id0918007034x2

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Open the glove compartment.

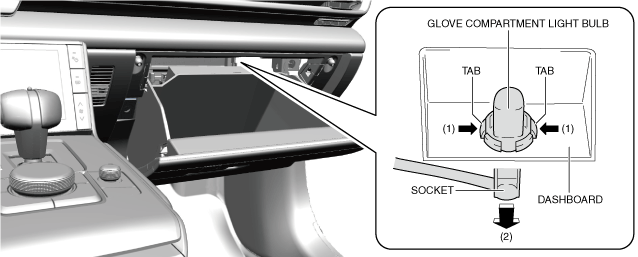

3.  While pressing the socket tabs in the direction of arrows (1) shown in the figure, move the socket in the direction of arrow (2) and remove it from the dashboard.

a30zzw00003007

4.  Remove the glove compartment light bulb.

am3zzw00028508

5.  Install in the reverse order of removal.
