RUNNING LIGHT SYSTEM [(E)]


id0918007056x2


Outline

•  The running light system automatically turns on the running lights while the vehicle is driven.

Function

•  The body control module (BCM) controls the running light system according to the vehicle conditions.

—: Not applicable

Vehicle speed

Main power

Parking brake

Selector lever position

Light switch position

Dimmer switch position

Auto light system

Running light

3 km/h {2 mph} or more
ON (READY on)
Release
Except P position
OFF
HI
Illuminated
LO
Illuminated
FLASH-TO-PASS
AUTO
HI
Off
Illuminated
On
LO
Off
Illuminated
On
FLASH-TO-PASS
Off
On
TNS (parking lights)
HI
Illuminated
LO
Illuminated
FLASH-TO-PASS
Illuminated
HEAD
HI
LO
FLASH-TO-PASS


Personalization features

•  The running light system can be switched between operable and inoperable (initial setting is [On]). For details on the personalization features, refer to the [PERSONALIZATION FEATURES] in the workshop manual.


Structure/Construction

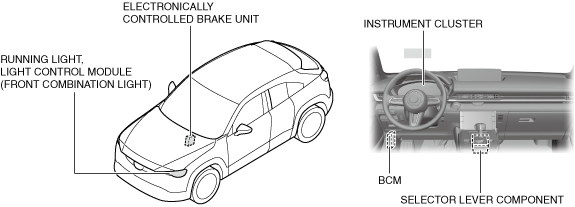

System structure

a30zzn00000349

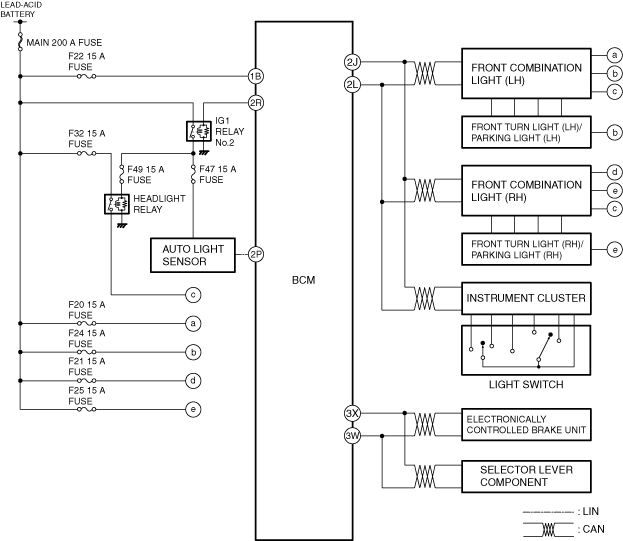

System wiring diagram

a30zzn00000350


Operation


Operation conditions

•  When all of the following operation conditions are met, the body control module (BCM) activates the running light system.
―  Vehicle speed: 3 km/h {2 mph} or more (vehicle speed signal)
―  Main power switched ON (READY on) (main power condition signal)
―  Parking brake: Released (parking brake switch signal)
―  Selector lever position: Except P position (selector lever position signal)
―  Light switch position: OFF, AUTO (auto light system not operated), or TNS (parking lights) (light switch position signal)

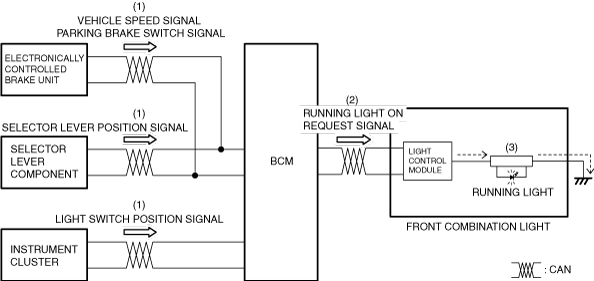

Operation

1.  When all of the following operation conditions are met (1), the body control module (BCM) transmits (2) running light on request signal to light control module.

2.  When the light control module receives the running light on request signal, the light control module turns the running light on (3).

a30zzn00000351
